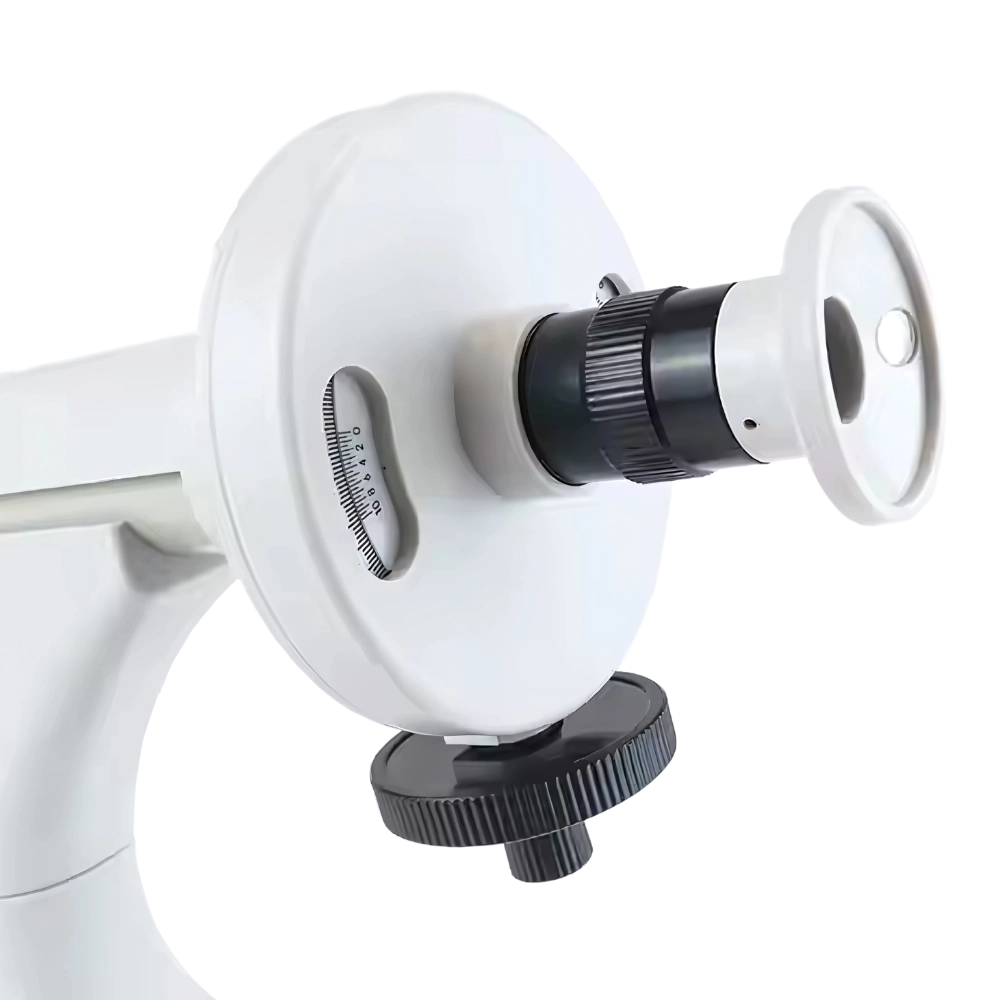

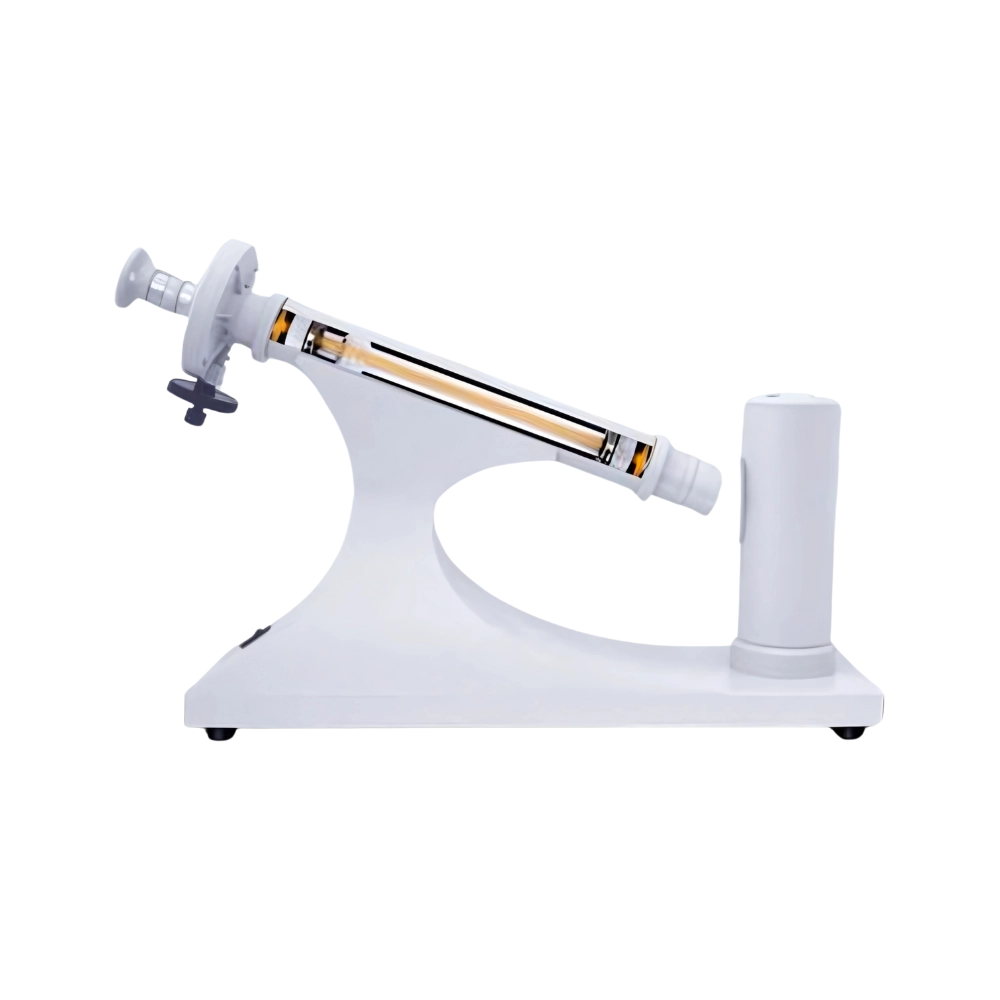

Manual Polarimeter LB-20POM

Name: Manual Polarimeter LB-20POM
Brand: Labotronics
SKU: LB-20POM
Rating: 5 (564 reviews)

Manual Polarimeter LB-20POM offers a ±180° measuring range for precise analysis of optically active substances. It accommodates sample tubes up to 200 mm and ensures accurate results with 0.05° accuracy. It utilizes a 589nm sodium lamp for stable and consistent illumination. Our manual polarimeter features a 3X magnification eyepiece for reliable optical rotation measurement.

Get Quote Download Catalog

Specifications

Measuring Range	±180°
Optical Wavelength	589 nm
Resolution	0.05°
Magnifier	3X
Scale Value	1°
Sample Tube Length	Up to 200 mm
Light Source	Sodium Lamp
Power Supply	AC 220V/50Hz
Dimension (L × W × H)	500 × 135 × 330 mm
Packing Dimension	600 × 200 × 400 mm
Net Weight	4 kg
Gross Weight	5 kg

Features

Wide measuring range
Efficient light source
Wide sample compatibility
User-friendly operation
Durable construction

Standard Accessories

100 and 200 mm Glass Sample Tubes

Sealing Rings

Applications

Manual Polarimeter LB-20POM accurately measures the optical rotation of optically active substances. It is widely used in pharmaceutical, chemical, food, and research laboratories for quality control and analysis.

Get Quote

Polarimeter LB-12POM

Measurement Range	Optical rotation: ± 89.99° Sugar content: ± 259°Z
Measurement Accuracy	± 0.01° (– 45° ≤ optical rotation ≤ + 45°) ± 0.02° (optical rotation < – 45° or > + 45°)
Temperature Control Range	15℃ to 35℃
Temperature Control Accuracy	± 0.2℃

Polarimeter LB-13POM

Measurement Range	Optical rotation: ± 89.99° Sugar content: ± 259°Z
Measurement Accuracy	± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ±0.02° (optical rotation < −45° or > +45°)
Temperature Control Range	15℃ to 45℃
Minimum Reading	0.001° (optical rotation)

Polarimeter LB-11POM

Measurement Range	Optical rotation: ±89.99° Sugar content: ±259°Z
Accuracy	±0.01° (−45° ≤ optical rotation ≤ +45°) ±0.02° (optical rotation < −45° or > +45°)
Temperature Control Range	15℃ to 45℃
Temperature Control Accuracy	± 0.2℃

Polarimeter LB-10POM

Measurement Range	Optical rotation: ± 89.99° Sugar content: ± 257°Z
Accuracy	± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ± 0.02° (at < −45° or > +45°)
Minimum Reading	0.001 (rotation)
Temperature Display Range	0 to 100°C
