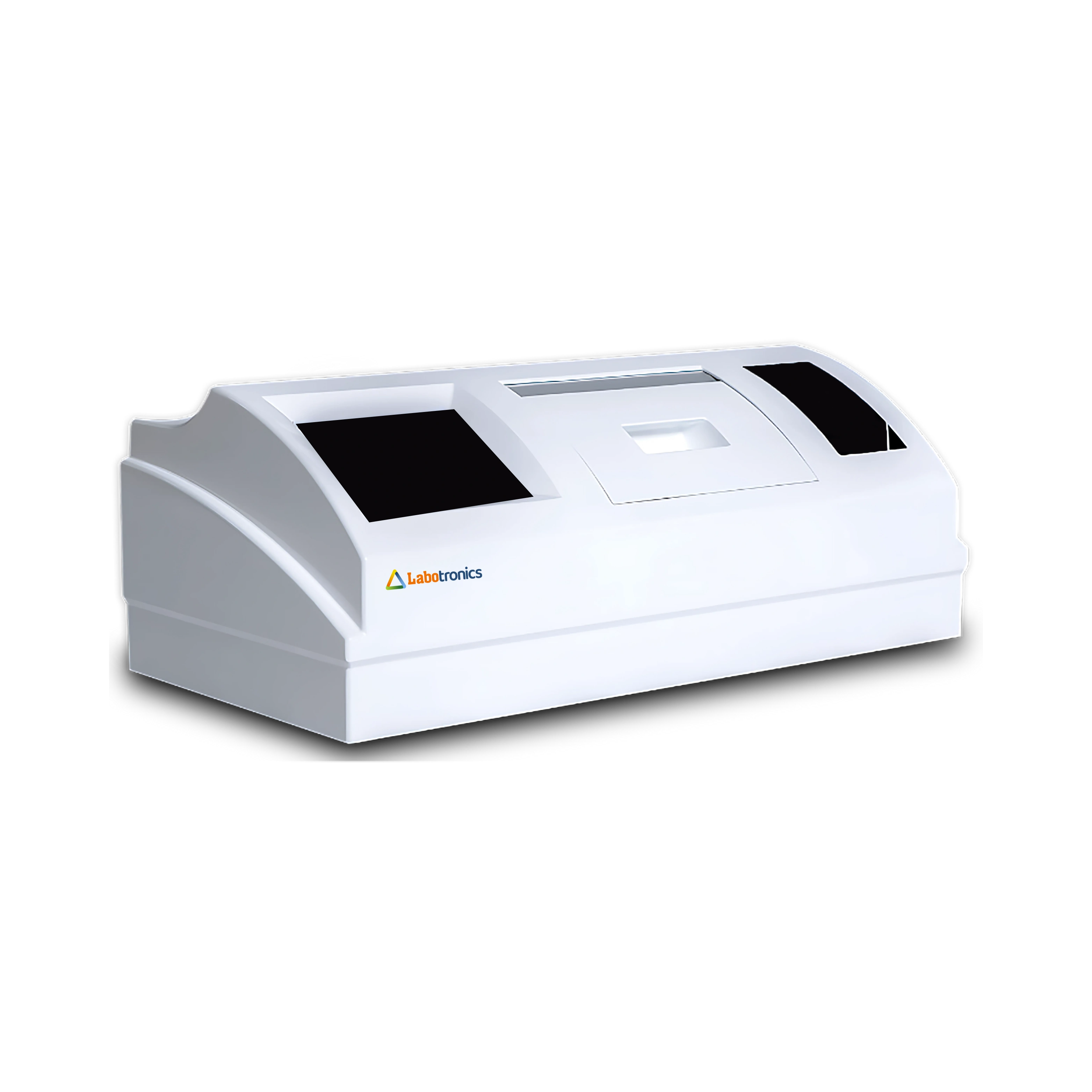

Polarimeter LB-12POM provides a measurement range of ±89.99° for optical rotation and up to ±259°Z for sugar content for reliable and versatile sample analysis. It operates within a temperature range of 15°C to 35°C, ensuring accurate and consistent results. It is equipped with built-in Peltier temperature control for precise and stable measurements. Our polarimeter features a 7-inch TFT full-color touch screen for clear and intuitive operation.
Get Quote Download CatalogSpecifications
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (– 45° ≤ optical rotation ≤ + 45°) ± 0.02° (optical rotation < – 45° or > + 45°) |
| Temperature Control Range | 15℃ to 35℃ |
| Temperature Control Accuracy | ± 0.2℃ |
| Minimum Reading | 0.001° (optical rotation) |
| Working Wavelength | 589.3 nm |
| Repeatability | 0.002° (optical rotation) |
| Light Transmittance | 1% |
| Light Source | LED |
| Data Storage | 1000 groups |
| Communication Interface | USB, RS232 |
| Display | 7-inch TFT true color touch screen |
| Power Consumption | 250W |
| Power Supply | 220V ± 22V, 50Hz ± 1Hz |
| Net Weight | 24 kg |
Features
Multi-mode measurement
Versatile tube compatibility
Multi-level data retrieval
Integrated automated system
Historical data access
Applications
Polarimeter LB-12POM is used to measure the optical rotation of substances and analyze their concentration, content, and purity. It is widely applied in sugar, pharmaceutical, petroleum, food, and chemical industries, as well as in research laboratories.
| Measurement Range | Optical rotation: ±89.99° Sugar content: ±259°Z |
| Accuracy | ±0.01° (−45° ≤ optical rotation ≤ +45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Temperature Control Accuracy | ± 0.2℃ |
.webp "Manual Polarimeter LB-20POM")
| Measuring Range | ±180° |
| Optical Wavelength | 589 nm |
| Resolution | 0.05° |
| Magnifier | 3X |
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 257°Z |
| Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ± 0.02° (at < −45° or > +45°) |
| Minimum Reading | 0.001 (rotation) |
| Temperature Display Range | 0 to 100°C |
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Minimum Reading | 0.001° (optical rotation) |
