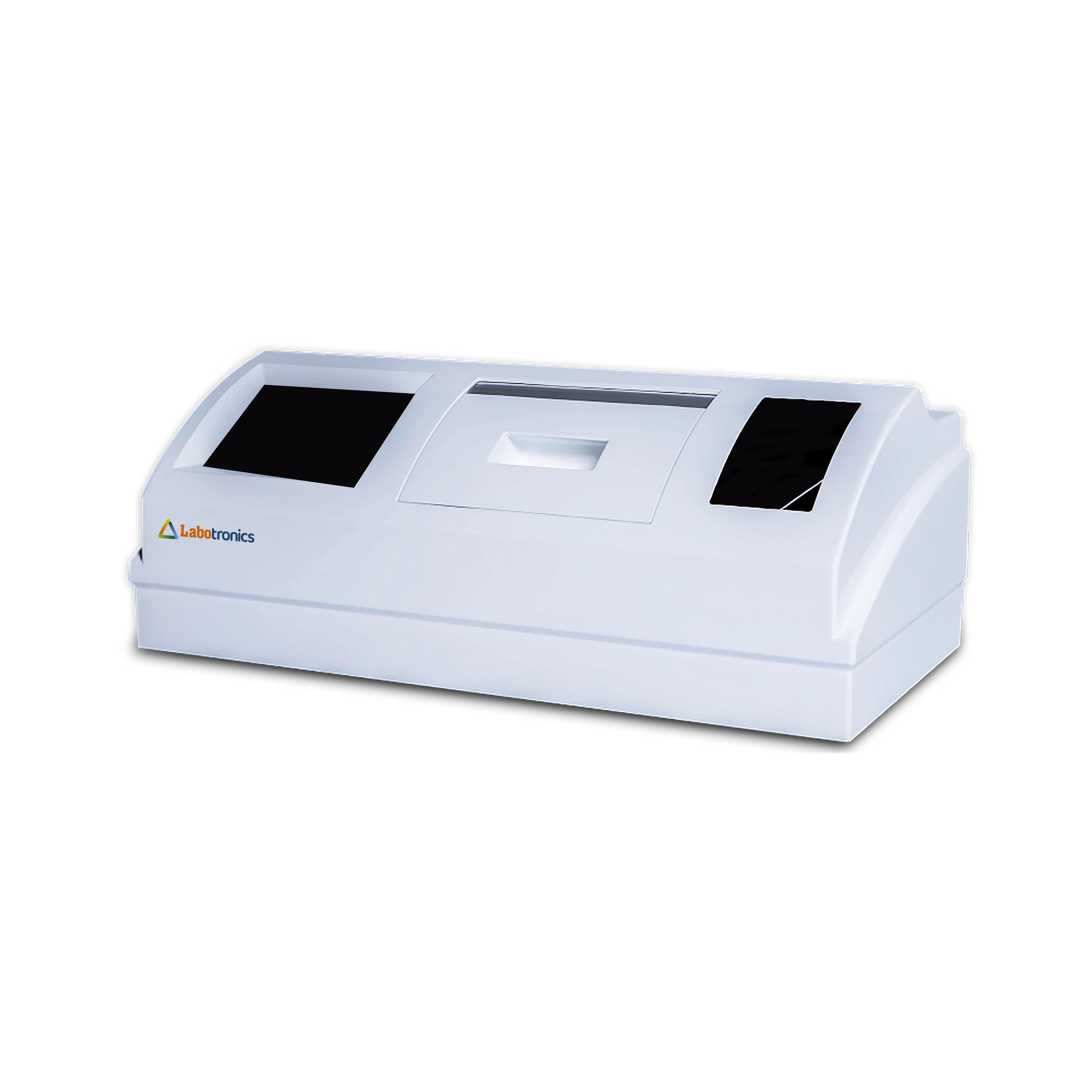

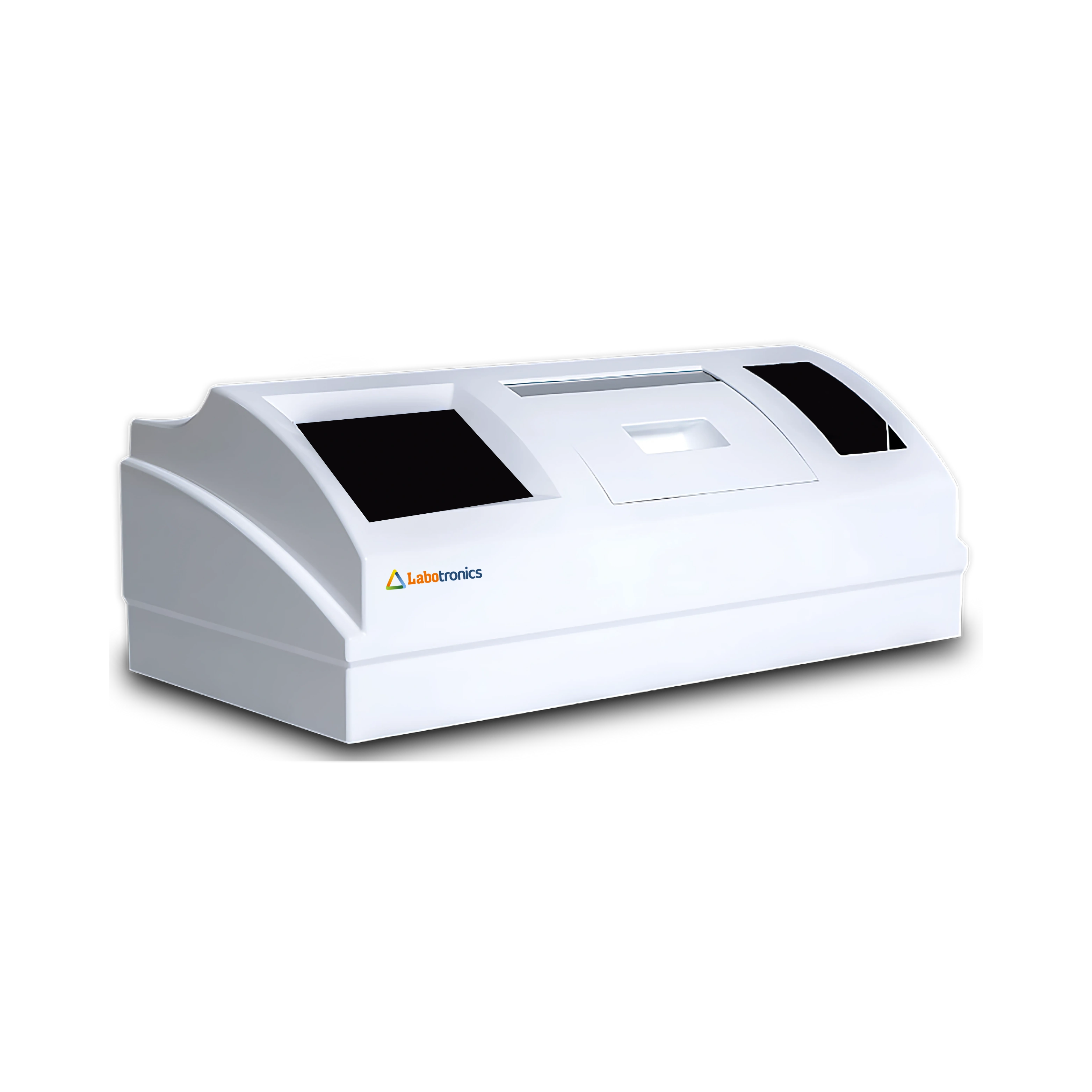

Polarimeter LB-10POM offers a measurement range of optical rotation of up to ±89.99° and sugar content of up to ±257°Z, ensuring precise analysis of optical activity and sugar levels. It provides a minimum reading of 0.001° with high accuracy for reliable results. It features a fully automated control system for convenient and easy operation. Our polarimeter is equipped with a large 7-inch TFT true color touch screen for intuitive operation and efficient data reading.
Get Quote Download CatalogSpecifications
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 257°Z |
| Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ± 0.02° (at < −45° or > +45°) |
| Minimum Reading | 0.001 (rotation) |
| Temperature Display Range | 0 to 100°C |
| Working Wavelength | 589.3 nm |
| Repeatability | 0.002° (optical rotation) |
| Light Transmittance | 1% |
| Light Source | LED |
| Data Storage Capacity | 1000 |
| Communication Interface | USB, RS232 |
| Display | 7-inch TFT true color touch screen |
| Power Consumption | 250W |
| Power Supply | 220V ± 22V, 50Hz ± 1Hz |
| Net Weight | 24 kg |
Features
Multi-mode measurement
LED light source
Precision optical filter
Lightweight design
Applications
Polarimeter LB-10POM is used to measure optical rotation for analyzing the concentration, content, and purity of substances. It is widely applied in the sugar, pharmaceutical, food, chemical, and petroleum industries, as well as in scientific research laboratories.
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (– 45° ≤ optical rotation ≤ + 45°) ± 0.02° (optical rotation < – 45° or > + 45°) |
| Temperature Control Range | 15℃ to 35℃ |
| Temperature Control Accuracy | ± 0.2℃ |
.webp "Manual Polarimeter LB-20POM")
| Measuring Range | ±180° |
| Optical Wavelength | 589 nm |
| Resolution | 0.05° |
| Magnifier | 3X |
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Minimum Reading | 0.001° (optical rotation) |
| Measurement Range | Optical rotation: ±89.99° Sugar content: ±259°Z |
| Accuracy | ±0.01° (−45° ≤ optical rotation ≤ +45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Temperature Control Accuracy | ± 0.2℃ |
