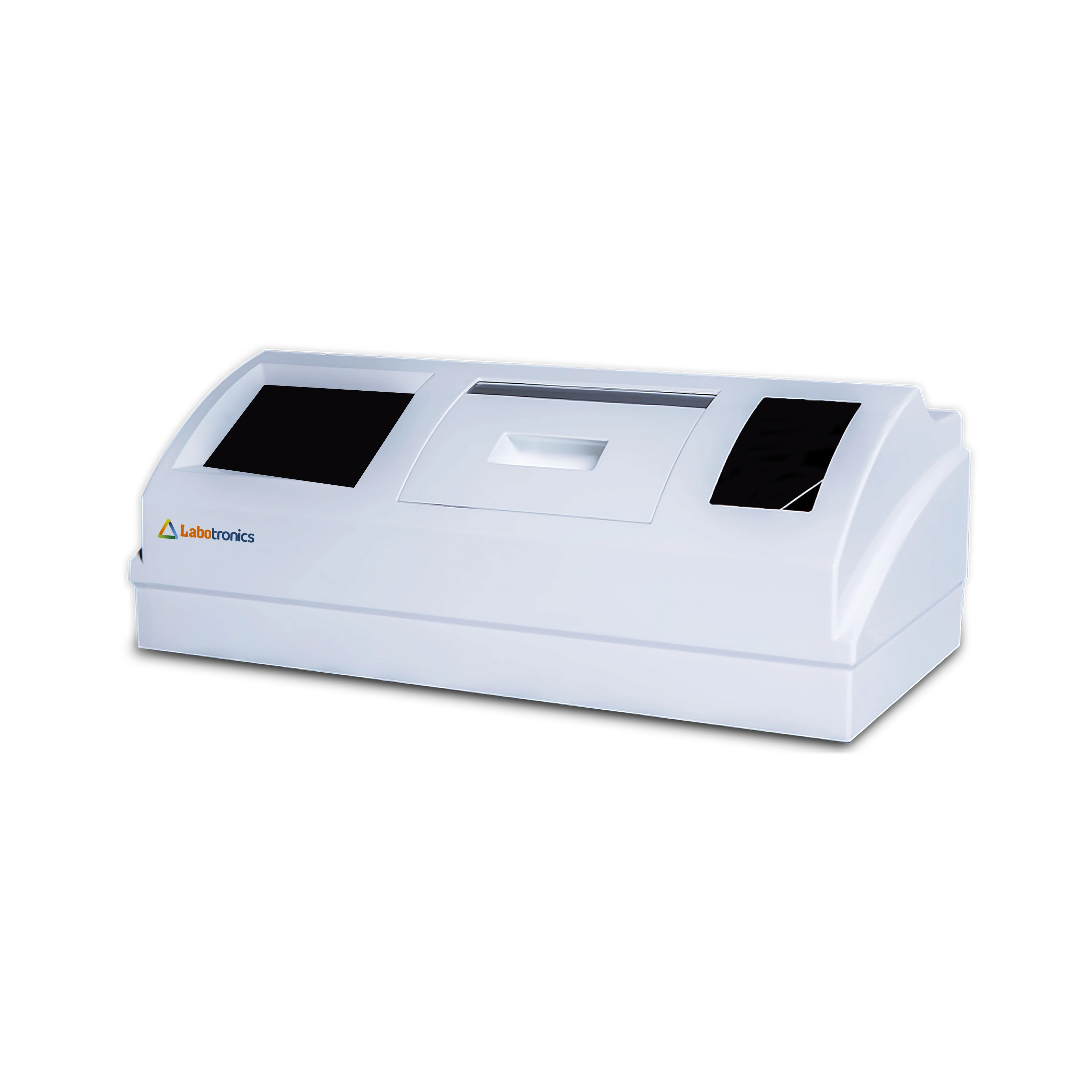

Polarimeter LB-13POM offers a measurement range of ±89.99° for optical rotation and up to ±259°Z for sugar content, enabling precise analysis. It maintains a temperature control range of 15 to 45℃ for stable and reliable performance. It features a fully automated, highly integrated control system for easy and convenient operation. Our polarimeter is equipped with a 7-inch TFT true color touch screen for clear display and user-friendly control.
Get Quote Download CatalogSpecifications
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Minimum Reading | 0.001° (optical rotation) |
| Working Wavelength | 589.3 nm |
| Repeatability | 0.002° (optical rotation) |
| Light Transmittance | 0.10% |
| Light Source | LED |
| Data Storage | 1000 groups |
| Communication Interface | USB, RS232 |
| Display | 7-inch TFT true color touch screen |
| Power Consumption | 250W |
| Power Supply | 220V ± 22V, 50Hz ± 1Hz |
| Net Weight | 24 kg |
Features
Durable LED lamp
Peltier temperature control
Automatic Calibration
Wide measurement range
Multi-mode measurement
Applications
Polarimeter LB-13POM is used to measure the optical rotation of substances to determine their concentration, purity, and specific rotation. It is widely used in pharmaceuticals, food and beverage, chemical industries, and research laboratories.
.webp "Manual Polarimeter LB-20POM")
| Measuring Range | ±180° |
| Optical Wavelength | 589 nm |
| Resolution | 0.05° |
| Magnifier | 3X |
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 259°Z |
| Measurement Accuracy | ± 0.01° (– 45° ≤ optical rotation ≤ + 45°) ± 0.02° (optical rotation < – 45° or > + 45°) |
| Temperature Control Range | 15℃ to 35℃ |
| Temperature Control Accuracy | ± 0.2℃ |
| Measurement Range | Optical rotation: ± 89.99° Sugar content: ± 257°Z |
| Accuracy | ± 0.01° (− 45° ≤ optical rotation ≤ + 45°) ± 0.02° (at < −45° or > +45°) |
| Minimum Reading | 0.001 (rotation) |
| Temperature Display Range | 0 to 100°C |
| Measurement Range | Optical rotation: ±89.99° Sugar content: ±259°Z |
| Accuracy | ±0.01° (−45° ≤ optical rotation ≤ +45°) ±0.02° (optical rotation < −45° or > +45°) |
| Temperature Control Range | 15℃ to 45℃ |
| Temperature Control Accuracy | ± 0.2℃ |
