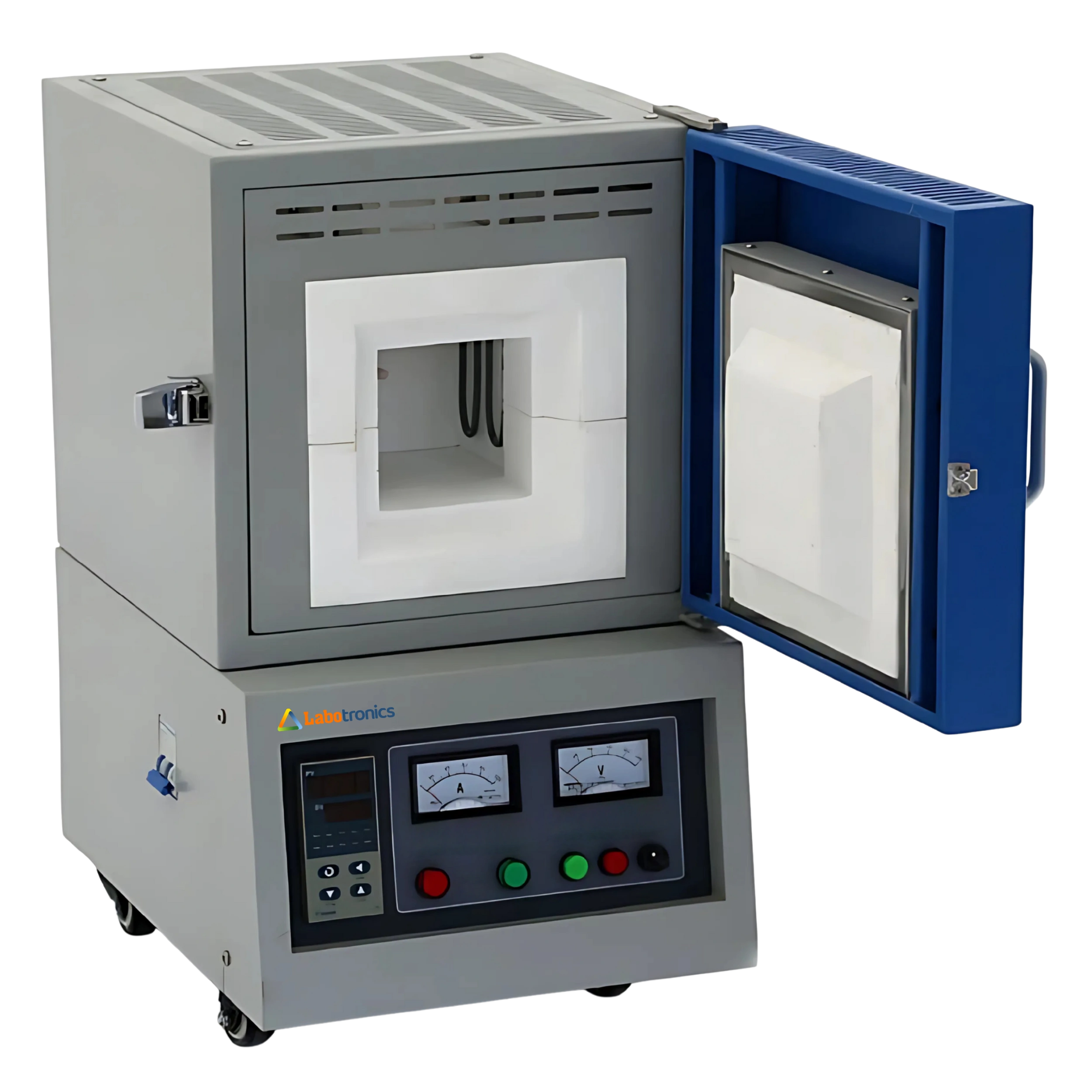

Muffle Furnace LB-21MFF offers a 36-liter chamber capacity and operates at a maximum temperature of 1700°C. It is equipped with Molybdenum Disilicide (MoSi₂) heating elements, ensuring excellent stability at high temperatures. The heating rate of 0 to 10°C per minute allows for controlled temperature ramping. Our furnace features an intelligent PID temperature controller, ensuring precise and consistent thermal regulation.
Get Quote Download CatalogSpecifications
| Capacity | 36 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 10℃/min (Adjustable) |
| Heating Element | Mosi2 heating element |
| Thermocouple | B type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | High-quality alumina microcrystalline fiber material |
| Power Consumption | 16 kW |
| Power Supply | 380V/ 2 phase |
| Internal Dimension (D × W × H) | 400 × 300 × 300 mm |
| External Dimension (D × W × H) | 770 × 620 × 1055 mm |
| Packaging Dimension | 975 × 725 × 1320 mm |
| Weight | 304 kg |
Features
Adjustable heating rate
Alumina fiber insulation
B-type thermocouple
Uniform heat distribution
Air-cooled exterior
Durable construction
Applications
Muffle Furnace LB-21MFF is used for precise high-temperature processes like sintering, annealing, and ashing of materials. It is widely used in dental laboratories, ceramic production units, metallurgy industries, and research institutions.
Frequently asked questions For
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
