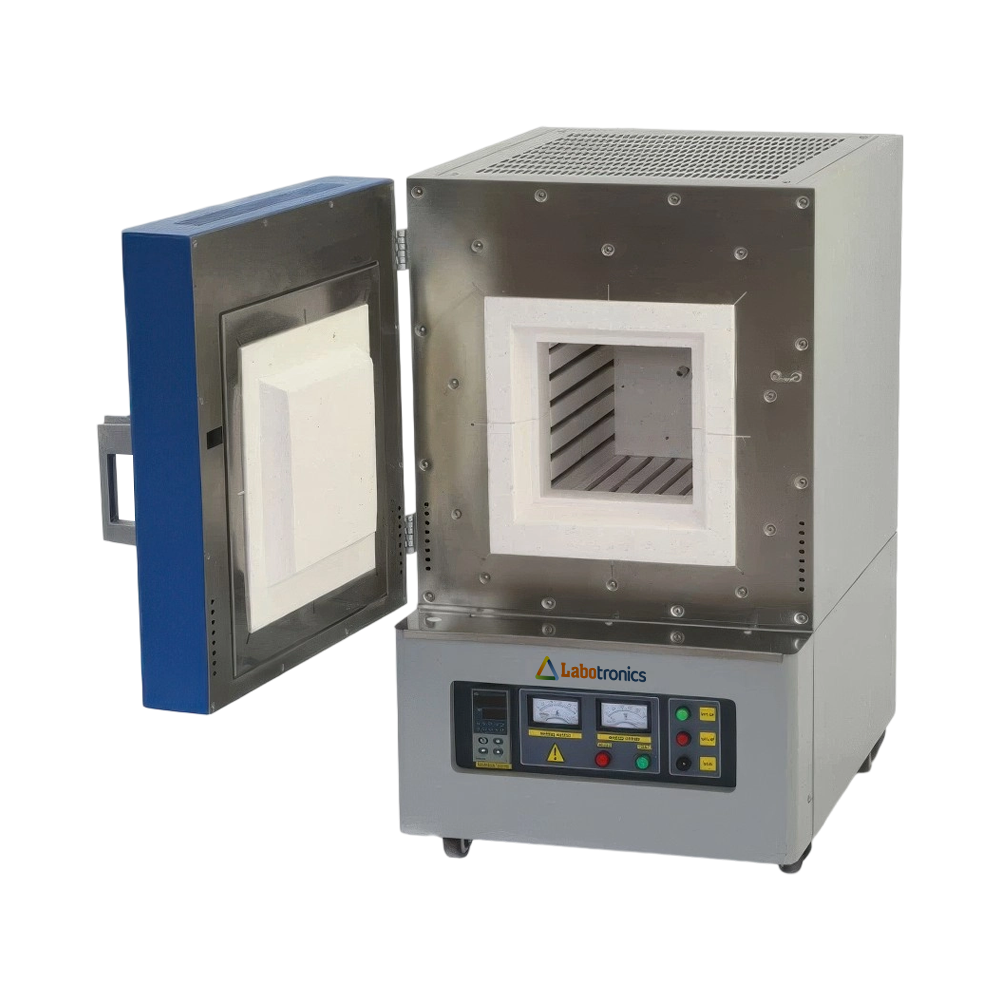

Muffle Furnace LB-10MFF operates efficiently at temperatures up to 1100℃ and offers a chamber capacity of 1 liter, ensuring precise heat treatment and material testing. It supports a heating rate of up to 30℃/min, allowing gradual and rapid temperature increases. It integrates a K-type thermocouple for accurate temperature monitoring. Our muffle furnace features a 30-segment programmable PID controller, enabling automated and multi-stage thermal processing.
Get Quote Download CatalogSpecifications
| Capacity | 1 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 30℃/min (Adjustable) |
| Heating Element | HRE Alloy Resistance Wire |
| Thermocouple | K Type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | High-quality alumina microcrystalline fiber material |
| Power Consumption | 1kW |
| Power Supply | 220V, Single Phase (1P) |
| Internal Dimension (D × W × H) | 100 × 100 × 100 mm |
| External Dimension (D × W × H) | 425 × 320 × 568 mm |
| Packaging Dimension | 550 × 525 × 885 mm |
| Weight | 61 kg |
Features
Applications
Muffle Furnace LB-10MFF is used for high-temperature heat treatment, sintering, and material testing of metals, ceramics, and other compounds. It is widely used in research laboratories, and industrial manufacturing facilities.
Frequently asked questions For
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Maximum Temperature | 1100℃ |
| Temperature Accuracy | ±2℃ |
| Heating Rate | ≤ 70℃/min |
| Heating Element | Dental silicon carbide rods |
| Maximum temperature | 1200 ℃ |
| Working temperature | 1100 ℃ |
| Temperature controller | Digital PID controller (Program: 30 segment) |
| Temperature control accuracy | ± 1℃ |
| Capacity | 36 L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Capacity | 4.5L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Capacity | 1 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Capacity | 1L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Capacity | 4.5 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Capacity | 12 L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Capacity | 4.5 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Capacity | 12 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Capacity | 36 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Capacity | 36 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Capacity | 12 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Capacity | 27 L |
| Working Temperature | 1100 ℃ |
| Maximum Temperature | 1200 ℃ |
| Temperature Control Accuracy | ± 1 ℃ |
