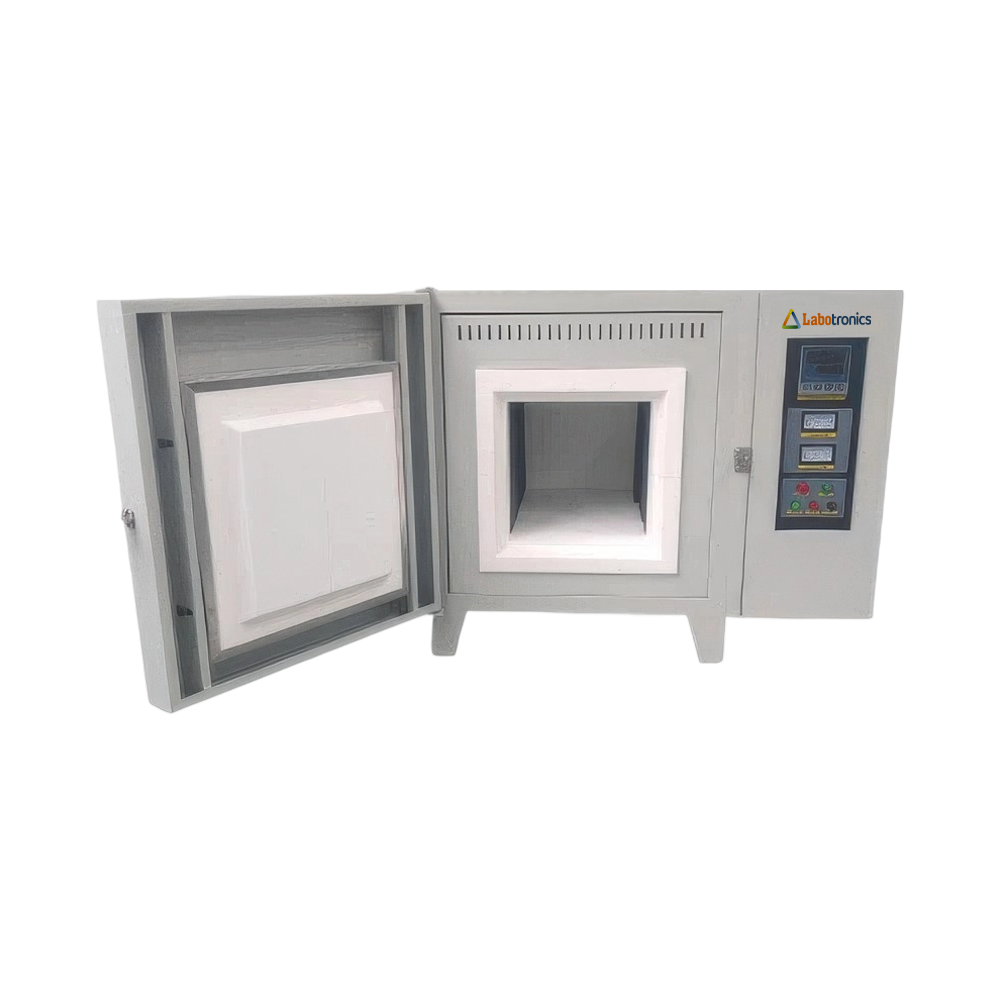

Muffle Furnace LB-16MFF operates at temperatures up to 1300°C and offers a 12 L capacity, ensuring reliable material heating and processing. It supports heating rates of up to 20°C per minute, enabling rapid temperature ramp-up. It is built with advanced Al₂O₃ ceramic fiber refractory lining for long-lasting insulation. The furnace features a digital PID controller for accurate multi-stage temperature control.
Get Quote Download CatalogSpecifications
| Capacity | 12 L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 20℃/min |
| Heating Element | SiC heating element |
| Thermocouple | S type |

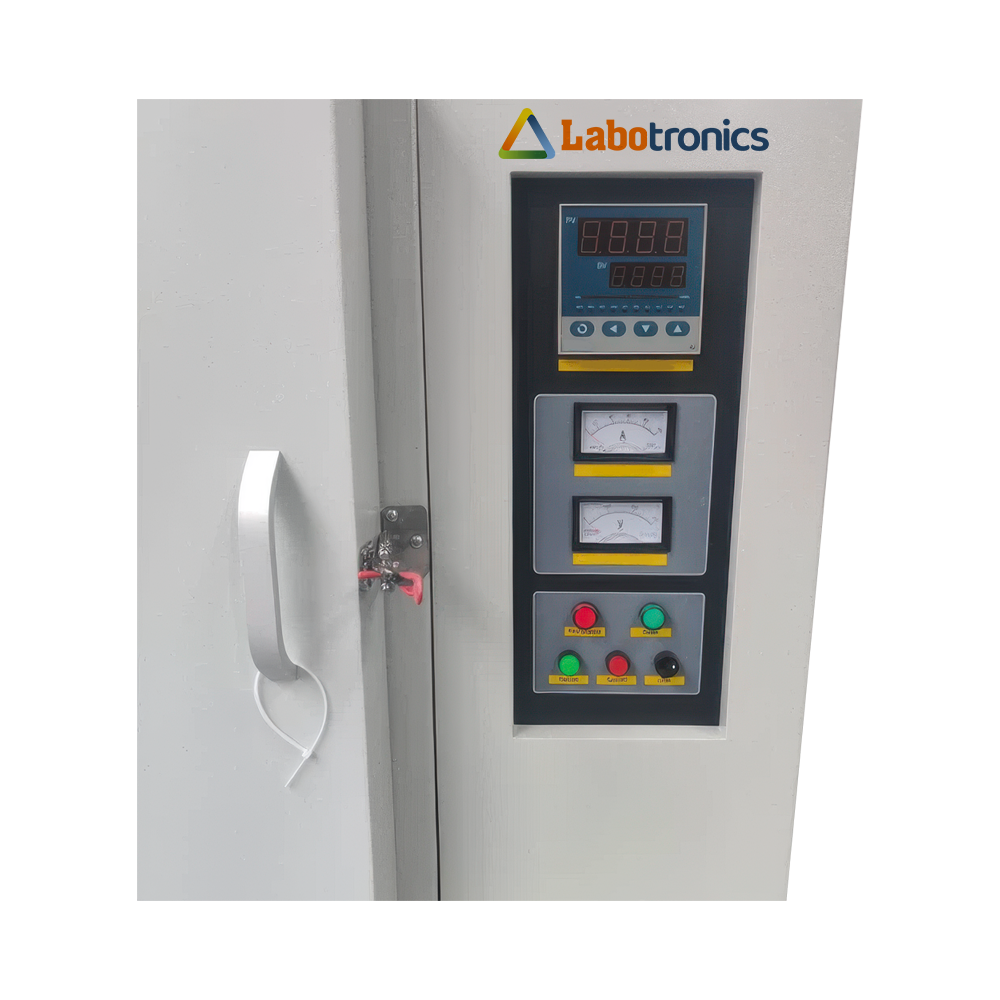

| Temperature Controller | Intelligent PID controller |
| Chamber Material | 1600°C Al₂O₃ ceramic fiber refractory chamber |
| Power Consumption | 9 kW |
| Power Supply | 220V /1phase |
| Internal Dimension (D × W × H) | 300 × 200 × 200 mm |
| Packaging Dimension | 865 × 625 × 1115 mm |
| Weight | 124 kg |
Features
Applications
Muffle Furnace LB-16MFF is used for high-temperature heat treatment, ashing, sintering and material testing. It is widely applied in laboratories, research institutes, metallurgy, ceramics, and quality control departments.
Frequently asked questions For
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
