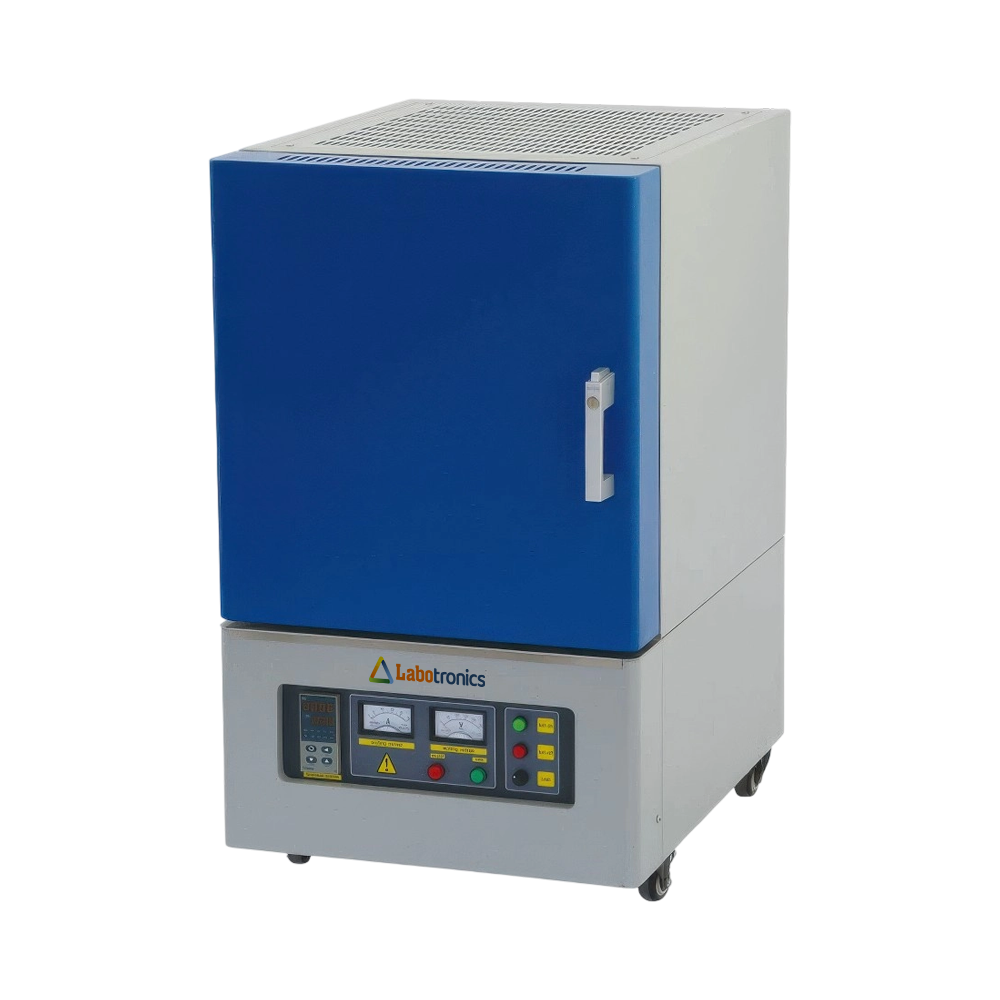

Muffle Furnace LB-11MFF features a 4.5 L chamber capacity and operates at a maximum temperature of 1200℃. It utilizes double-layer air cooling technology, maintaining safe and stable operation. It offers heating rates up to 30℃ per minute, providing precise control over heating processes. The muffle furnace has an intelligent PID controller, ensuring accurate monitoring and stable temperature control.
Get Quote Download CatalogSpecifications
| Capacity | 4.5 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 30℃/min (Adjustable) |
| Heating Element | HRE Alloy Resistance Wire |
| Thermocouple | K Type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | High-quality alumina microcrystalline fiber material |
| Power Consumption | 2 kW |
| Power Supply | 220V, Single Phase (1P) |
| Internal Dimension (D × W × H) | 200 × 150 × 150 mm |
| External Dimension (D × W × H) | 570 × 470 × 715 mm |
| Packaging Dimension | 755 × 575 × 1025 mm |
| Weight | 93 kg |
Features
Applications
Muffle Furnace LB-11MFF is suitable for sintering, melting, and heat treatment of metals, ceramics, and composite materials. It is widely used in laboratories, research institutes, universities, material testing centers, and industrial workshops.
Frequently asked questions For
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
