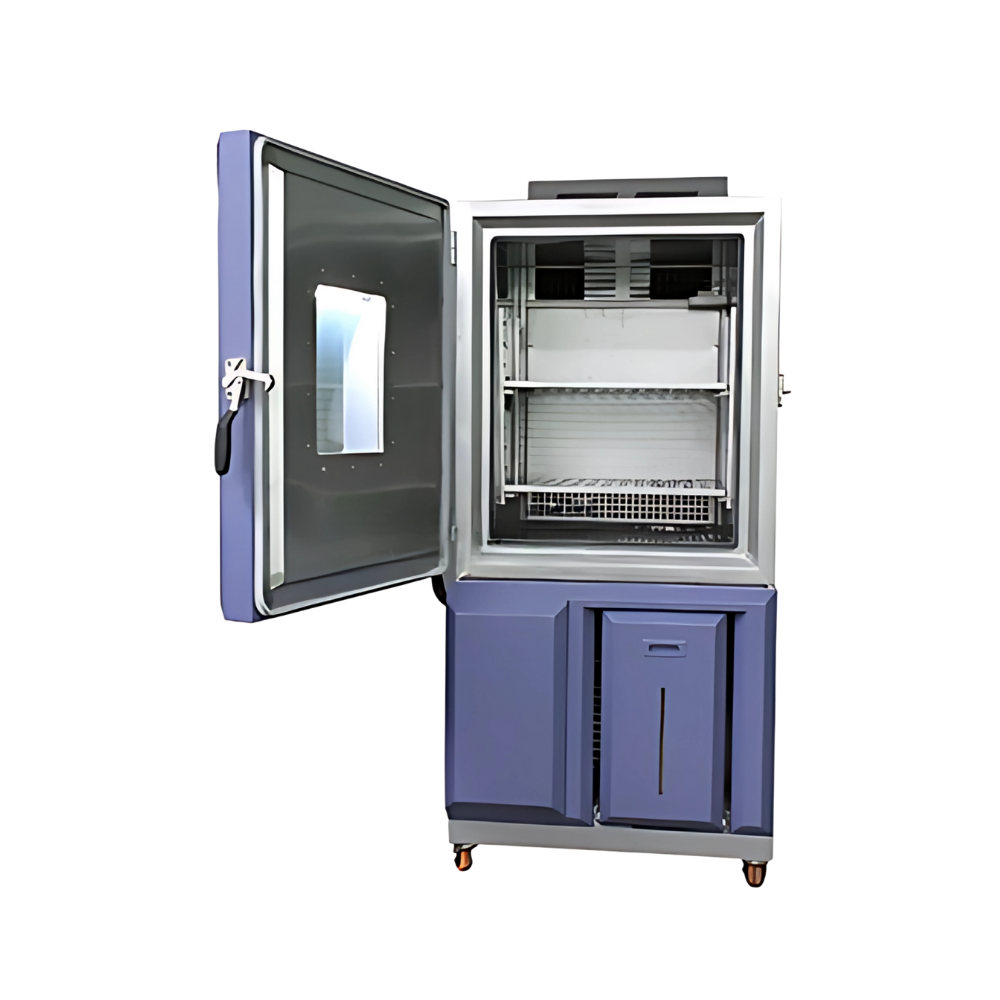

Temperature and Humidity Test Chamber LB-73THC provides an 800L capacity and operates within a temperature range of -40°C to 150°C. It is equipped with a long-axis centrifugal fan for uniform temperature and humidity distribution. It features a high-quality refrigeration system for efficient cooling. Our test chamber includes a digital display, allowing real-time monitoring of environmental testing.
Get Quote Download CatalogSpecifications
| Capacity | 800L |
| Temperature Range | -40°C to 150°C |
| Temperature Fluctuation | ± 0.5℃ |
| Temperature deviation | ≤ ± 2.0℃ |
| Humidity Range | 20% to 98% RH |
| Humidity Fluctuation | ≤ 2.5% |
| Humidity Deviation | ≤ ± 3% |
| Heating Rate | ≥ 2 to 3°C/min |
| Cooling Rate | ≥ 1°C/min |
| Display | 7-inch touch screen controller |
| Noise Level | ≤ 70 dB(A) |
| Heater | Approx. 3 kW |
| Power Consumption | 11 kW |
| Power Supply | 380V |
| Inner Chamber Dimension | 100 × 100 × 800 mm |
| External Chamber Dimension | 1450 × 1300 × 2100 mm |
Features
Programmable test cycles
Easy maintenance
Automatic water supply
Durable construction
Power failure recovery
Overheat protection
Applications
Temperature and Humidity Test Chamber LB-73THC is widely used for stability studies, product reliability assessment, and climatic simulation in electronics, automotive, pharmaceutical industries, and research laboratories.
Frequently asked questions For
1. What is the Temperature and Humidity Test Chamber LB-73THC used for?
The LB-73THC is designed to simulate a wide range of environmental conditions for testing the durability, stability, and performance of products or materials under controlled temperature and humidity levels.
2. What types of samples can I test with the LB-73THC Chamber?
The LB-73THC Chamber can test a wide range of samples, including pharmaceutical products, packaging materials, electronics, cosmetic formulations, and biological specimens that require environmental stability validation.
3. How does the LB-73THC chamber ensure accurate temperature and humidity control?
The LB-73THC uses a high-precision sensor system and PID-controlled heating/humidification to maintain consistent temperature and humidity levels, even during long-duration testing cycles.
4. Is the LB-73THC chamber safe for sensitive or reactive materials?
Yes, the LB-73THC offers tight control over environmental parameters, minimizing fluctuations and ensuring a stable environment, ideal for delicate or temperature-sensitive materials.
5. What is a Temperature and Humidity Test Chamber?
Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.
6. Do you offer different types of temperature and humidity test chambers?
Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.
7. How do I choose the right chamber for my application?
It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.
8. Are your chambers suitable for long-duration tests?
Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
