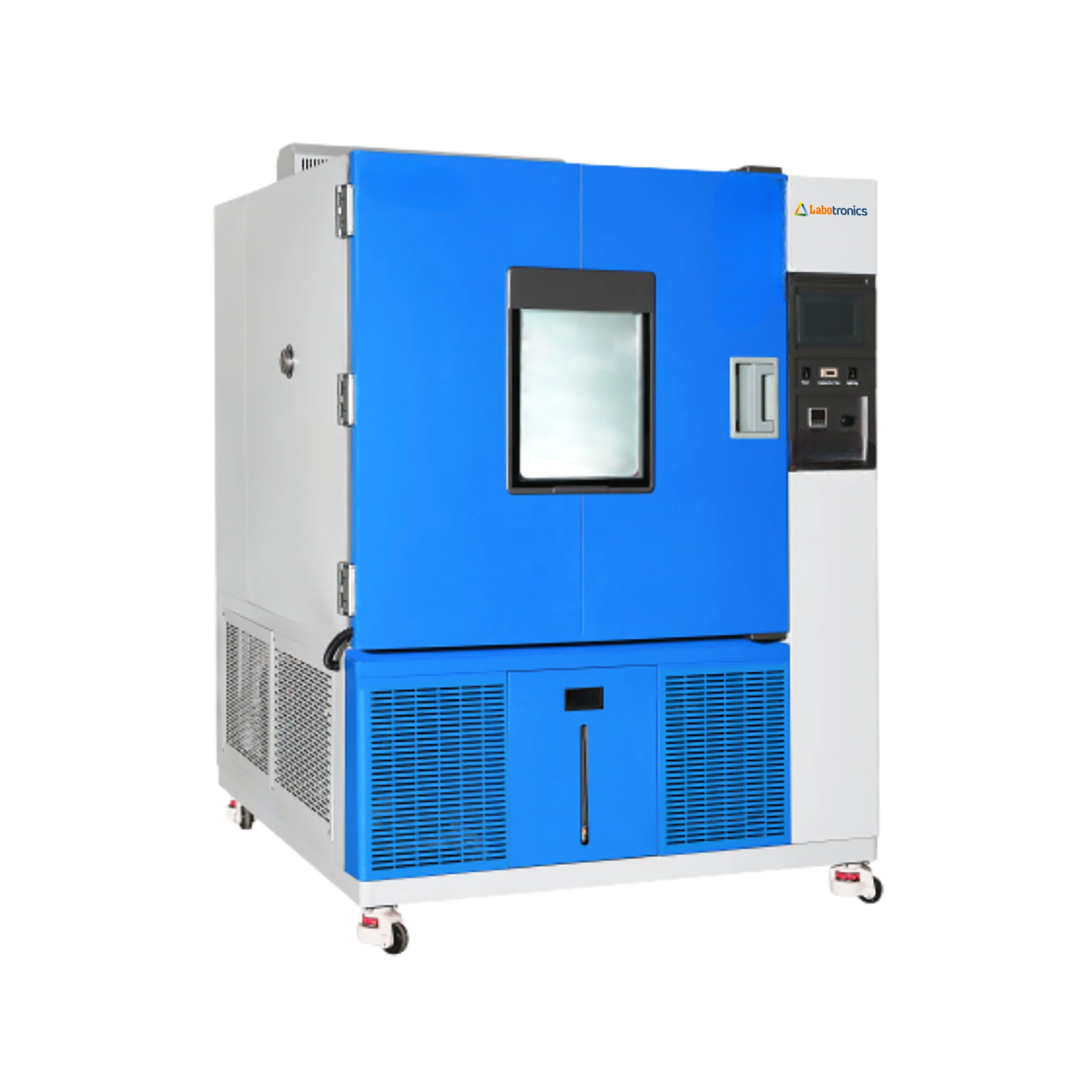

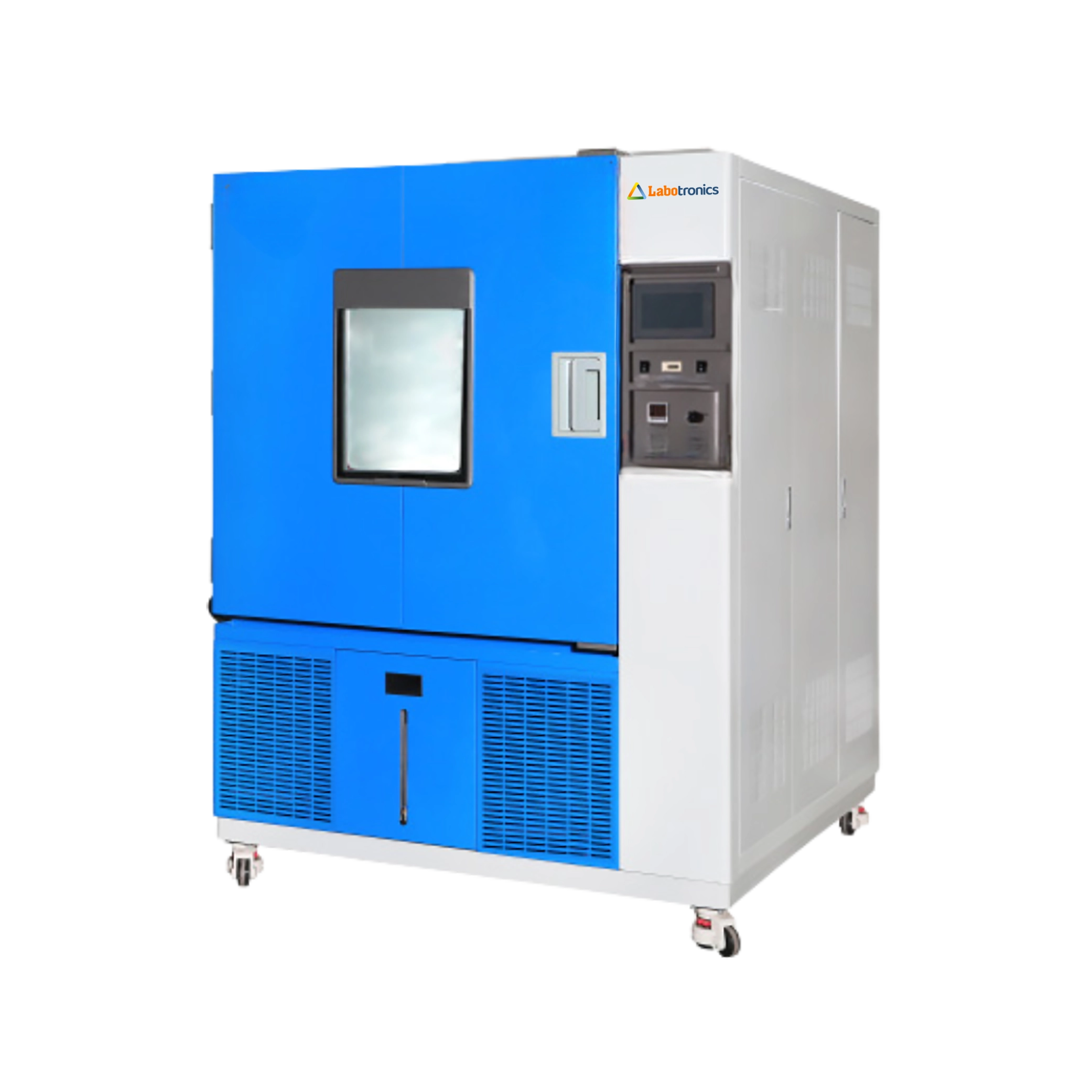

Temperature and Humidity Test Chamber LB-20CTH

Temperature And Humidity Test Chamber LB-20THC

Name: Temperature And Humidity Test Chamber LB-20THC
Brand: Labotronics
SKU: LB-20THC
Rating: 4.8 (552 reviews)

Temperature and Humidity Test Chamber LB-20THC provides a 50L capacity and operates at a temperature range of up to 150°C for reliable product testing. It has a NiCr heater and steam humidification system for consistent humidity control. It features a high-quality refrigeration system for efficient cooling. Our test chamber offers digital screen control, ensuring precise monitoring of humidity and temperature levels.

Get Quote Download Catalog

Specifications

Capacity	50L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ± 0.5°C
Temperature Uniformity	≤ 2.0°C
Humidity Range	20% to 98% R.H
Humidity Deviation	+2/-3% R.H
Heating Rate	2.0 to 3.0°C/min
Cooling Rate	0.7 to 1.0°C/min
Refrigerant	R404A/R23
Humidification System	Shallow slot steam
Dehumidification System	Refrigeration dehumidification mode
Heating System	NiCr heater
Circulation System	Single-cycle, stainless-steel fan
Display	7-inch Touch Screen Controller
Interior	Anti-corrosion SUS 304 mirror stainless steel
Exterior	Reinforced steel plate with electrostatic spraying
Insulation	Fiberglass wool/polyurethane foam
Power Supply	220V 50/60Hz, 380V 50/60Hz
Inner Dimension (W × D × H)	350 × 320 × 450 mm
Outer Dimension (W × D × H)	950 × 950 × 1400 mm
Weight	200 kg

Features

Automatic water supply
Uniform air circulation
Multi-leaf centrifugal fan
Overheat protection
Energy-efficient unit
User-friendly interface

Applications

Temperature and Humidity Test Chamber LB-20THC is used to test the durability and performance of products. It is widely used in electronics, automotive, aerospace, and materials testing industries.

Get Quote

1. What is a Temperature and Humidity Test Chamber?

Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.

2. Do you offer different types of temperature and humidity test chambers?

Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.

3. How do I choose the right chamber for my application?

It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.

4. Are your chambers suitable for long-duration tests?

Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.

Temperature And Humidity Test Chamber LB-15THC

Capacity	800L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-23THC

Capacity	250L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-11THC

Capacity	100L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature and humidity test chamber LB-82THC

Chamber capacity	408 L
Interior dimensions (W x H x D)	700 x 750 x 800 mm
Exterior dimensions (W x H x D)	980 x 1940 x 1740 mm
Temperature range	( -20 °C to 150 °C )

Temperature and humidity test chamber LB-90THC

Chamber capacity	225 L
Interior dimensions (W x H x D)	700 x 700 x 480 mm
Exterior dimensions (W x H x D)	980 x 1890 x 1460 mm
Temperature range	( -70 °C to 150 °C )

Temperature and humidity test chamber LB-84THC

Chamber capacity	1000 L
Interior dimensions (W x H x D)	1000 x 1000 x 1000 mm
Exterior dimensions (W x H x D)	1280 x 2160 x 1950 mm
Temperature range	( -20 °C to 150 °C )

Temperature and humidity test chamber LB-93THC

Chamber capacity	1000 L
Interior dimensions (W x H x D)	1000 x 1000 x 1000 mm
Exterior dimensions (W x H x D)	1280 x 2160 x 1950 mm
Temperature range	( -70 °C to 150 °C )

Temperature And Humidity Test Chamber LB-72THC

Capacity	408L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature And Humidity Test Chamber LB-10THC

Capacity	50L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ± 0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-25THC

Capacity	800L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-14THC

Capacity	500L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature and humidity test chamber LB-92THC

Chamber capacity	800 L
Interior dimensions (W x H x D)	1000 x 1000 x 800 mm
Exterior dimensions (W x H x D)	1280 x 2160 x 1750 mm
Temperature range	( -70 °C to 150 °C )
