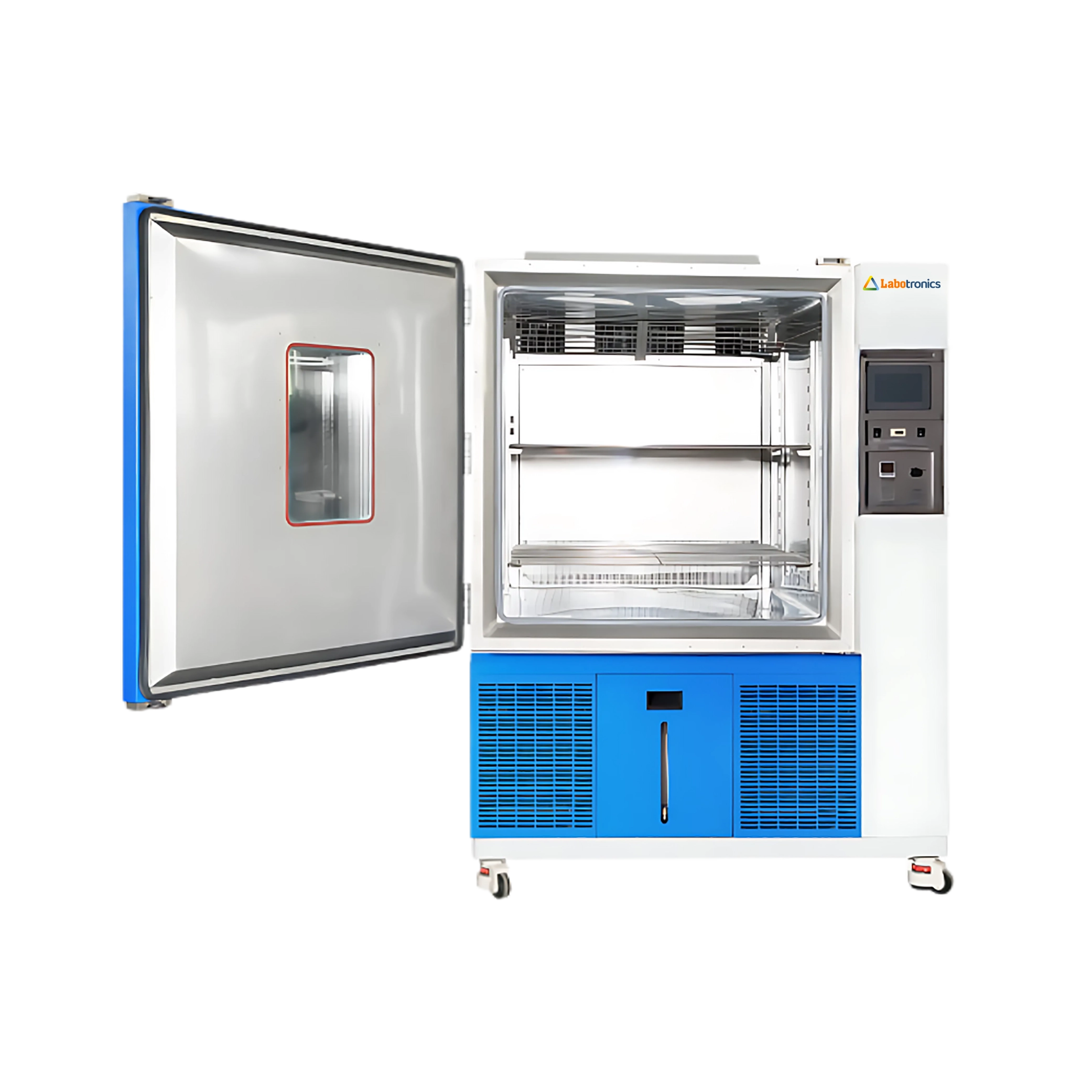

Temperature and Humidity Test Chamber LB-13THC operates with a maximum temperature range of up to 100°C and has a 250L testing capacity. It is equipped with an independent heating system for stable and uniform temperature control. It utilizes a shallow slot steam humidification for precise humidity regulation. Our test chamber features a 7-inch digital touchscreen, ensuring reliable environmental testing.
Get Quote Download CatalogSpecifications
| Capacity | 250L |
| Temperature Range | 0 to 100°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Humidity Range | 20% to 98% R.H |
| Humidity Deviation | +2/-3% R.H |
| Heating Rate | 2.0 to 3.0°C/min |
| Cooling Rate | 0.7 to 1.0°C/min |
| Refrigerant | R404A/R23 |
| Humidification System | Shallow slot steam |
| Dehumidification System | Refrigeration dehumidification mode |
| Heating System | NiCr heater |
| Circulation System | Single-cycle, stainless-steel fan |
| Display | 7-inch Touch Screen Controller |
| Interior | Anti-corrosion SUS 304 mirror stainless steel |
| Exterior | Reinforced steel plate with electrostatic spraying |
| Insulation | Fiberglass wool/polyurethane foam |
| Power Supply | 220V 50/60Hz, 380V 50/60Hz or customized |
| Inner Dimension (W × D × H) | 600 × 500 × 810 mm |
| Outer Dimension (W × D × H) | 1120 × 1100 × 2010 mm |
| Weight | 550 kg |
Features
Applications
Temperature and Humidity Test Chamber LB-13THC is perfect for testing materials and components' durability under extreme temperature and humidity conditions. It is widely used in electronics, automotive, and pharmaceutical industries.
Frequently asked questions For
1. What is a Temperature and Humidity Test Chamber?
Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.
2. Do you offer different types of temperature and humidity test chambers?
Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.
3. How do I choose the right chamber for my application?
It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.
4. Are your chambers suitable for long-duration tests?
Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | 408L |
| Temperature Range | -40°C to 150°C |
| Temperature Fluctuation | ± 0.5℃ |
| Temperature deviation | ≤ ± 2.0℃ |
| Chamber capacity | 150 L |
| Interior dimensions (W x H x D) | 600 x 600 x 460 mm |
| Exterior dimensions (W x H x D) | 880 x 1730 x 1400 mm |
| Temperature range | ( -20 °C to 150 °C ) |
.webp "Temperature And Humidity Test Chamber LB-22THC")
| Capacity | 150L |
| Temperature Range | 0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable) |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
.webp "Temperature And Humidity Test Chamber LB-21THC")
| Capacity | 100L |
| Temperature Range | 0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable) |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
.webp "Temperature And Humidity Test Chamber LB-25THC")
| Capacity | 800L |
| Temperature Range | 0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable) |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Capacity | 800L |
| Temperature Range | -40°C to 150°C |
| Temperature Fluctuation | ± 0.5℃ |
| Temperature deviation | ≤ ± 2.0℃ |
.webp "Temperature And Humidity Test Chamber LB-23THC")
| Capacity | 250L |
| Temperature Range | 0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable) |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Chamber capacity | 408 L |
| Interior dimensions (W x H x D) | 700 x 750 x 800 mm |
| Exterior dimensions (W x H x D) | 980 x 1940 x 1740 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 408 L |
| Interior dimensions (W x H x D) | 700 x 750 x 800 mm |
| Exterior dimensions (W x H x D) | 980 x 1940 x 1740 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 225 L |
| Interior dimensions (W x H x D) | 700 x 700 x 480 mm |
| Exterior dimensions (W x H x D) | 980 x 1890 x 1460 mm |
| Temperature range | ( -70 °C to 150 °C ) |
.webp "Temperature And Humidity Test Chamber LB-11THC")
| Capacity | 100L |
| Temperature Range | 0 to 100°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Capacity | 225L |
| Temperature Range | -40°C to 150°C |
| Temperature Fluctuation | ± 0.5℃ |
| Temperature deviation | ≤ ± 2.0℃ |
| Chamber capacity | 800 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 800 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1750 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 1000 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 1000 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1950 mm |
| Temperature range | ( -70 °C to 150 °C ) |
.webp "Temperature And Humidity Test Chamber LB-30THC")
| Capacity | 50L |
| Temperature Range | -20 to 150°C |
| Temperature Fluctuation | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ 2°C |
