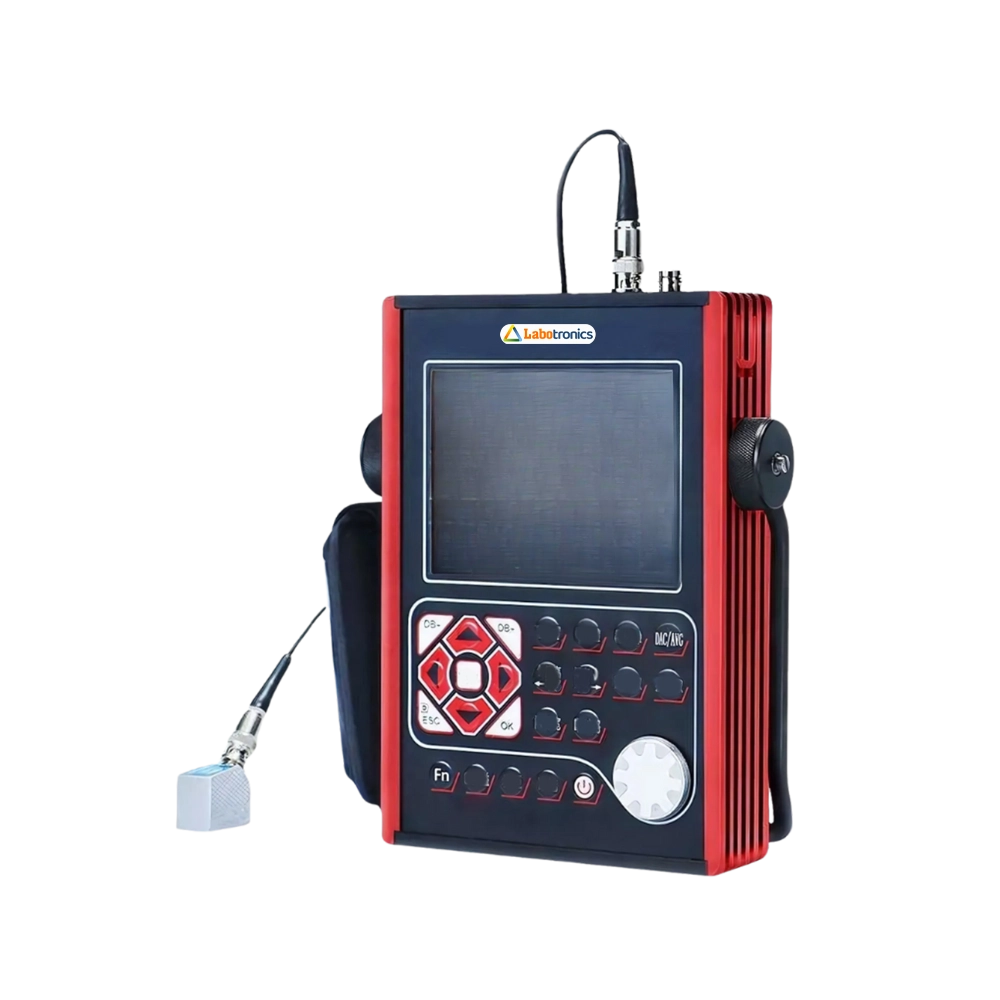

Ultrasonic Flaw Detector LB-10UFD

Name: Ultrasonic Flaw Detector LB-10UFD
Brand: Labotronics
SKU: LB-10UFD
Rating: 4.6 (568 reviews)

Ultrasonic Flaw Detector LB-10UFD is designed to detect flaws at depths ranging from 0 to 15000 millimetres. It operates within a frequency range of 0.2 to 20 MHz, accommodating different resolution requirements. The adjustable pulse amplitude ensures compatibility with different probes and materials. Our flaw detector features a high-resolution true-color LCD display for clear data monitoring.

Get Quote Download Catalog

Specifications

Detection Range	0 to 15000 mm
Operating Frequency Range	0.2 to 20 MHz
Repetition Frequency range	20 to 2000 Hz
Sound Velocity Range	100 to 20000 m/s
Dynamic Range	≥ 36 dB
Vertical Linearity Error	≤ 1.5%
Horizontal Linearity Error	≤ 0.1%
Pulse Amplitude Range	100V to 500V (graded selection)
Pulse Width Range	0.0 to 0.510 µs
Probe Damping	50 Ω, 150 Ω, 250 Ω, 500 Ω
Resolution	> 42Db (5P14)
Sensitivity Margin	> 65dB (200mm deep Ф2 flat bottom hole)
Digital Suppression	0 to 80 %
Electrical Noise Level	≤ 10%
Probe Type	Straight probe, angle probe, dual crystal probe, penetration probe
Gate	Incoming wave gate Missing wave gate Single gate reading Double gate reading Peak trigger Edge trigger
Ambient Temperature Range	-10 to 50 ℃
Relative Humidity	20 to 95% RH
Video Recording	10 videos, each with a maximum length of 5 minutes.
Data Storage	500 parameter channels and 1000 reports
Power Supply	DC 9V
Dimensions	263 × 170 × 61 mm
Weight	1.92kg

Features

Adjustable LCD brightness
USB 2.0 interface for fast data transfer
High-capacity lithium battery
Adjustable gate position, width, and height
Customizable waveform color
Features both buzzer and LED light alarms

Standard Accessories

Straight probe
Angled probe
Power adapter
BNC probe cable
U disk storage
Shoulder strap
Instrument case

Applications

Ultrasonic flaw detectors are used for non-destructive testing to find internal defects like cracks and voids in materials. They are crucial in aerospace, manufacturing, and construction to ensure safety and quality.
