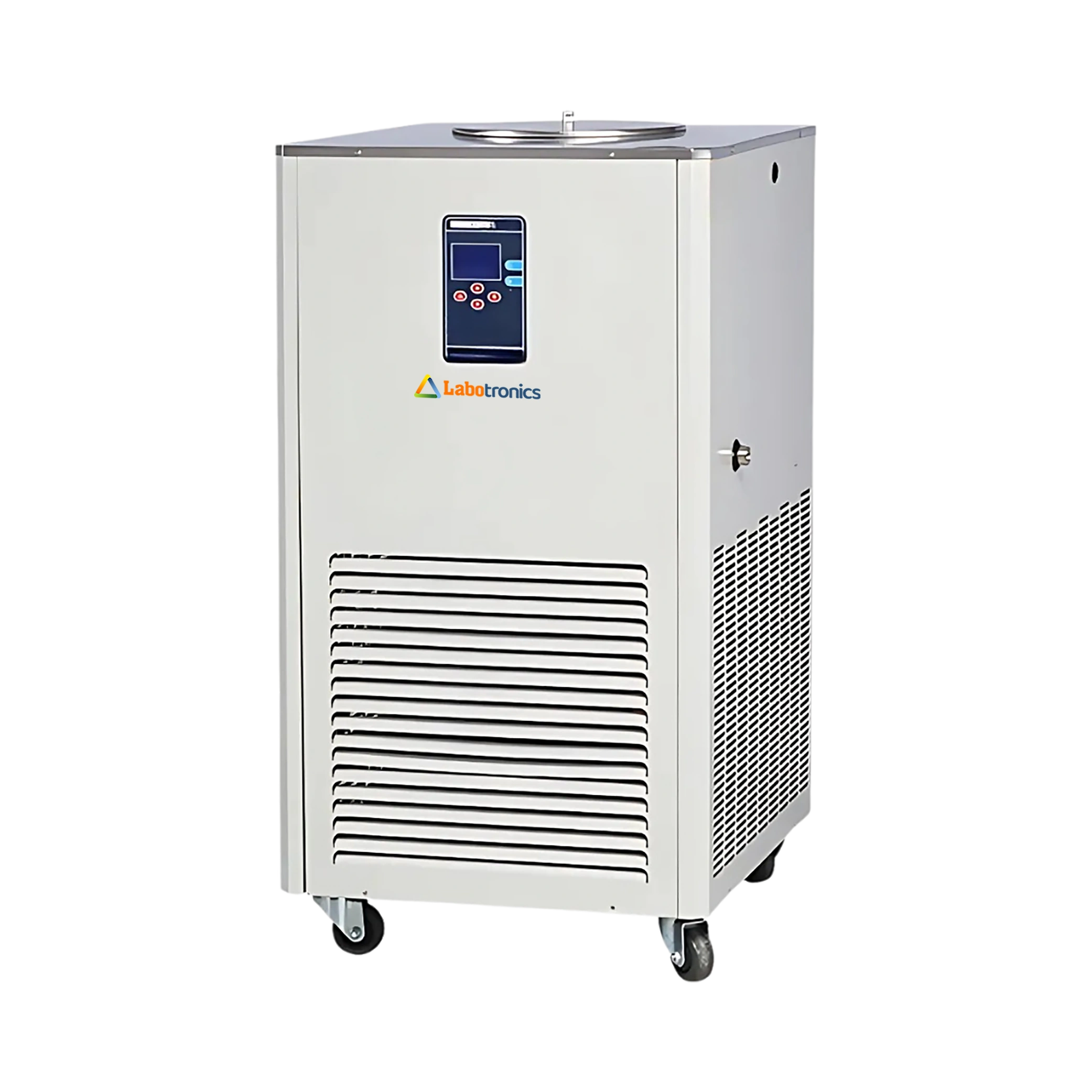

Recirculating Chiller LB-15RCC features a 7 L cooling tank and provides reliable cooling from -30 °C to room temperature. It includes a high-performance compressor, ensuring fast and stable temperature regulation. It uses an eco-friendly R404A refrigerant for efficient, and safe cooling performance. Our recirculating chiller includes an intuitive digital display for precise thermal control and easy operation.
Get Quote Download CatalogSpecifications
| Tank Capacity | 7 L |
| Temperature Range | -30 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Tank Opening Diameter | 180 mm |
| Tank Dimension | 160 × 310 mm |
| Pump Flow Rate | 20 L/min |
| Pump Type | Shield pump |
| Rated Head | 8 m |
| Refrigerant type | R404A |
| Horsepower | 1 ½ HP |
| Condenser Type | Air cooling |
| Fan Type | External rotor axial flow fan |
| Evaporator Type | Internally threaded copper pipe |
| External Circulation Interface | G1/2 |
| Cooling Capacity | 2800 W to 600 W |
| Compressor Power | 1.125 kW |
| Compressor Current | 6.3 A |
| Pump Power Consumption | 100 W |
| Power Consumption | 1300 W |
| Power Supply | 220 V, 50 Hz (1P) |
| Dimensions (L × W × H) | 620 × 540 × 920 mm |
| Net Weight | 71 kg |
| Gross Weight | 95 kg |
Features
Air-cooled condenser
Stable flow with shield pump
P100 temperature sensor
Internal copper evaporator
External rotor axial fan
Applications
Recirculating Chiller LB-15RCC is ideal for precise cooling of analytical instruments such as rotary evaporators, spectrophotometers, condensers, and reactors. It is widely used in laboratories, universities, pharmaceuticals, and industrial settings.
| Tank Capacity | 17 L |
| Temperature Range | -20 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Tank capacity | 8 L |
| Temperature Range | 5 °C to 40 °C |
| Temperature Stability | ± 0.3 °C |
| Temperature Sensor | PT100 |
| Tank Capacity | 7 L |
| Temperature Range | -30 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Tank Capacity | 100 L |
| Temperature Range | -40 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Temperature Range | -30 to RT (±1℃) °C |
| Flume Tank Volume | 10 L |
| Cooling Capacity | RT: 2010 W 0℃: 1650 W -30℃: 400 W |
| Rated Flow | 35 L/min |
| Tank Capacity | 35 L |
| Temperature Range | -40 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Temperature Range | - 30 to RT (±1℃) °C |
| Flume Tank Volume | 5 L |
| Cooling Capacity | RT: 875 W 0℃: 650 W - 30℃: 255 W |
| Flume Opening Diameter | 180 mm |
| Tank Capacity | 5 L |
| Temperature Range | -30 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Tank Capacity | 10 L |
| Temperature Range | -40 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
