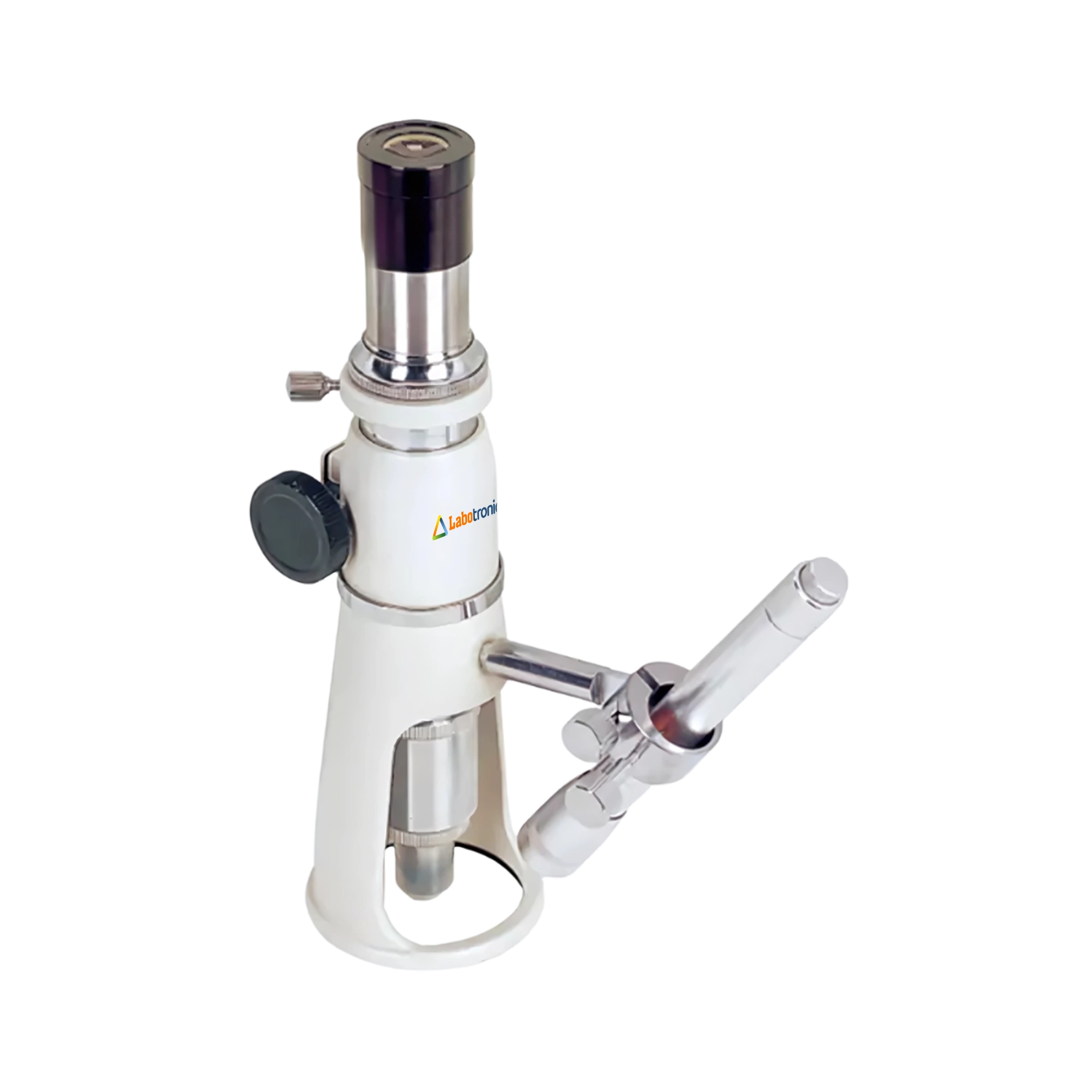

Portable Measuring Microscope LB-13PET delivers 20x magnification with a 2x objective lens, ensuring clear and detailed observation of samples. It has a 30 mm focusing range, allowing smooth and precise vertical adjustments of samples. It features a micrometer division of 0.05 mm, enabling accurate and precise measurements. Our microscope incorporates a compact pen light, offering bright illumination for enhanced clarity during measurements.
Get Quote Download CatalogSpecifications
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.05 mm |
| Numerical Aperture | 0.05 |
| Mechanical Tube Length | 160 mm |
| Working Distance | 17.2 mm |
| Light Source | Pen Light |
| Power Supply | AAA Battery |
| Product Dimension | 63 × 210 mm |
| Net Weight | 0.65 kg |
Features
Clear image quality
Sharp focus
Wide field eyepiece
Smooth focusing
Portable design
Lightweight build
Durable construction
Easy handling
Applications
Portable Measuring Microscope LB-13PET is suitable for accurate observation and measurement of small samples and structures. It is commonly used in laboratories, workshops, research centers, and quality control inspections.
Frequently asked questions For
1. What is a portable measuring microscope?
A portable measuring microscope is a compact, handheld optical instrument designed to magnify and precisely measure small objects and components. It is ideal for accurate inspections and quality control across various industries.
2. What are the ideal applications for portable measuring microscopes?
These microscopes are perfect for measuring tiny mechanical parts, electronic circuit boards, fibers, and other small items that require precise dimensional analysis. Labtronics portable measuring microscopes help professionals ensure quality standards efficiently and reliably.
3. Can Labotronics microscopes be used outdoors or in the field?
Yes, their compact size, battery-powered illumination, and rugged build make them perfect for outdoor or on-site inspections in industries like construction, manufacturing, or utilities.
4. Can Labotronics portable measuring microscopes measure different magnifications?
Yes, Labotronics offers models with a variety of magnifications ranging from 20X to 100X, allowing users to select the ideal zoom level for their specific measurement and inspection needs.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
