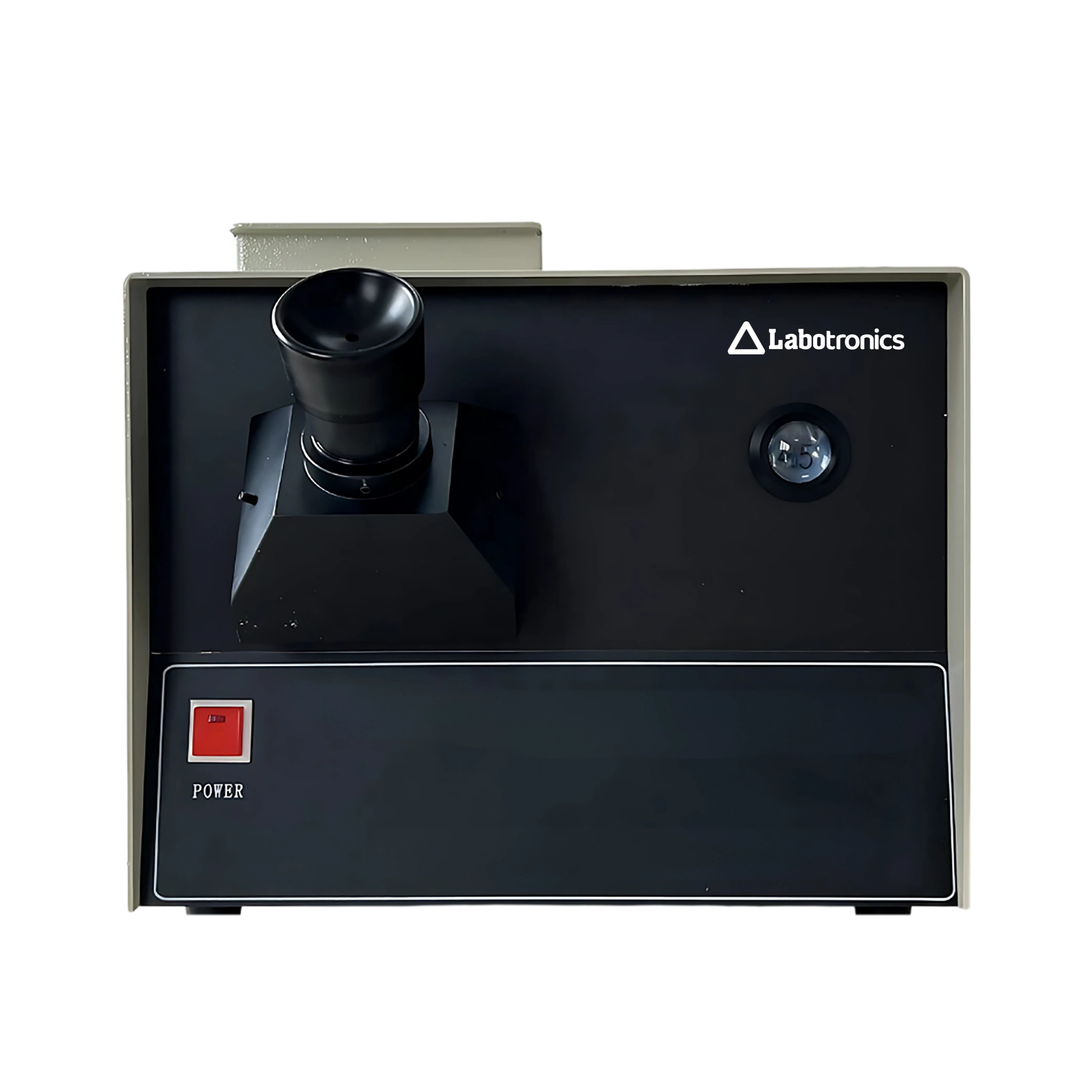

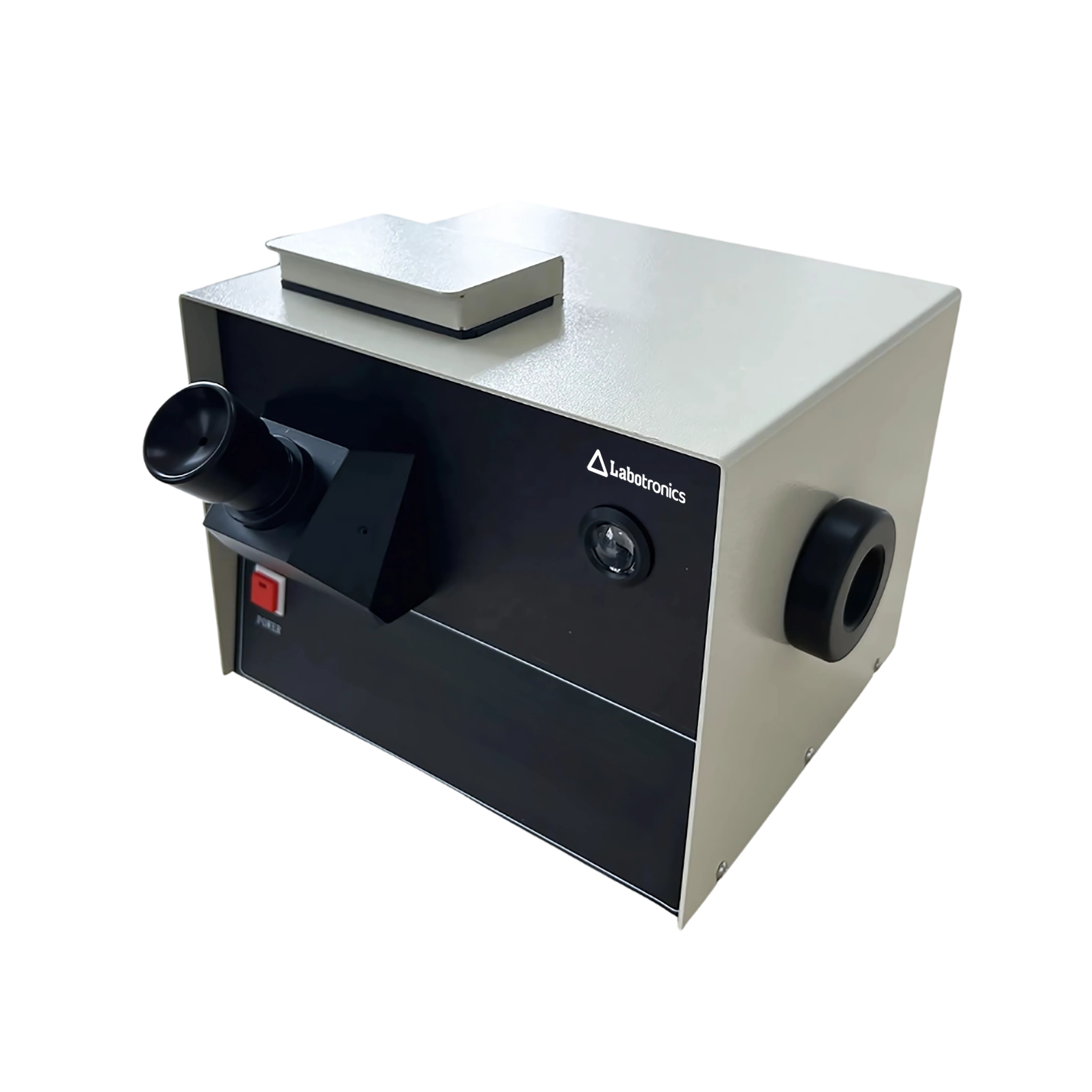

Colorimeter LB-11PCM is a visual comparator unit with optical microscope for colour measurement. Luminous light source provides constant and stable light. Conforms to ASTM D1500 standard test method for ASTM colour of petroleum products.
Get Quote Download CatalogSpecifications
| Measuring color temperature | 2750 K ± 50 K |
| Colorimetric cylinder (inner diameter) | ( 33 mm x 125 mm ) ± 5 mm |
| Number of color samples | 1 ~ 25 |
| Luminous source | 100 W |
| Ambient temperature | 10 °C ~ 40 °C |
| Relative humidity | ≤ 85 % |
| Compliance | ASTM D1500 |
| Voltage | AC 220 V ± 10 %, 50 Hz |
| Dimensions | 310 x 280 x 320 mm |
| Weight | 6 kgs |
Features
Applications
Used in petroleum, oil and automobile industries for visual determination of the color of wide variety of petroleum products such as lubricating oil, fuel and diesel.
| Measurement Method | Platinum-Cobalt Colorimetry |
| Measuring Range | 0 to 500 PCU |
| Absorbance Range | 0.3 to 3A |
| Colorimetric Method | Tube Colorimetric |
| Measuring color temperature | 2750 K ± 50 K |
| Light hole diameter | Φ 14 mm |
| Colorimetric tube diameter | Φ 32 mm |
| Total number of testing light holes | 26 |
