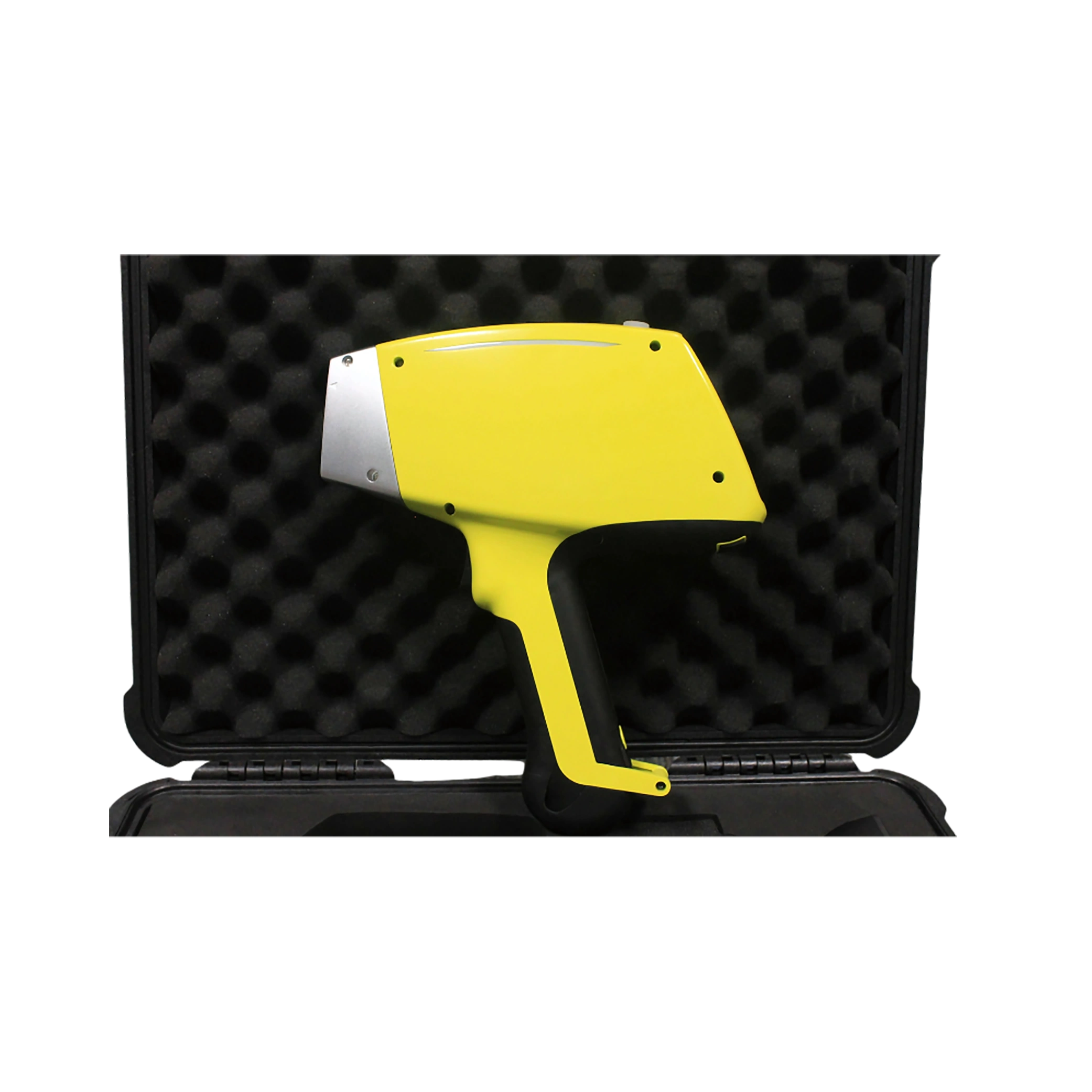

XRF Soil Analyzer LB-41SA

Specifications

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Au, Hg, Pb, Bi, Ba, Th, U, Sc, Cs, Te, Pd, Hf, Ta, Re, Ge Tl and I
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %
Pipe flow pressure	Adjustable
Digital pulse processor	80 MHz ADC digital pulse processor
Heat dissipation system	T-shaped radiator
Display panel	4.3 inch industrial resistive touch screen
Display brightness	Automated adjustment
Memory capacity	32 GB
Data storage	32 GB, 300,000 spectral data
Battery life	8 hours
Dimensions ( W x H x D )	79 x 280 x 254 mm
Weight ( with battery )	1.6 kgs

Features

• Non-destructive, rapid and accurate analysis of environmental toxins
• Environmental range sensing system
• Enhanced spectral analysis ( intensity fitting algorithm )
• Built-in GPS with latitude, longitude and altitude data
• Double beam technology for radiation protection
• Wide range elemental analysis ( 37 standard elements )
• Analysis of small diameter samples ( ppm range )
• Real-time battery monitoring ( M-bus battery )
• 50 kV / 200 µA Au, W, Rh target excitation source ( optional )
• USB, Bluetooth and WiFi compatible
• Data exportable to EXCEL or PDF format

Applications

Used for on-site environmental pollution assessment to test for the presence of toxic and hazardous heavy metals like arsenic, barium, cadmium, chromium, lead, mercury, selenium and silver as part of environmental remediation efforts, regulatory compliance and to ensure product safety
