Glassware Washer LB-29GW is designed with a chamber capacity of 680 L to accommodate large batches of laboratory glassware. It offers water circulation at a flow rate of 0 to 1600 L/min, ensuring efficient water pressure for washing. It utilizes an injection drying system for efficient drying of glassware. Our glassware washers provide various cleaning options, including quick rinsing and settings for removing grease, oil, and biological residues.
Get Quote Download CatalogSpecifications
| Chamber capacity | 680 L |
| Cleaning Basket Layer | 6 Layers |
| Pump Flow Rate | 0 to 1600 L/min |
| Standard Programs | 10 programs available |
| Self-Defined Programs | 10 customizable programs |
| Drying System | Injection Drying |
| Air Heating Power | 8kW |
| Chamber material | 316 Stainless Steel |
| Shell material | 304 Stainless Steel |
| Pipe material | 316 Stainless Steel+ Pharmaceutical Silicone |
| Black Box System | Logs operational data |
| Data Storage System | U-disk SD card storage |
| Screen Size | 7-inch OLED LCD touchscreen |
| Printer Interface | RS232 |
| Power Supply | 380V 21kW |
| Dimensions (L × W × H) | 1560 × 790 × 1980 mm |
| Weight | 480 Kg |
Features
Standard Accessories
Water Inlet PipelineApplications
Glassware Washer LB-29GW is widely used in various industries, including laboratories, hospitals, and research institutions, ensuring safe and accurate results in experiments and medical analysis.Basket Selection
| Model No. | Name | Specification | Image |

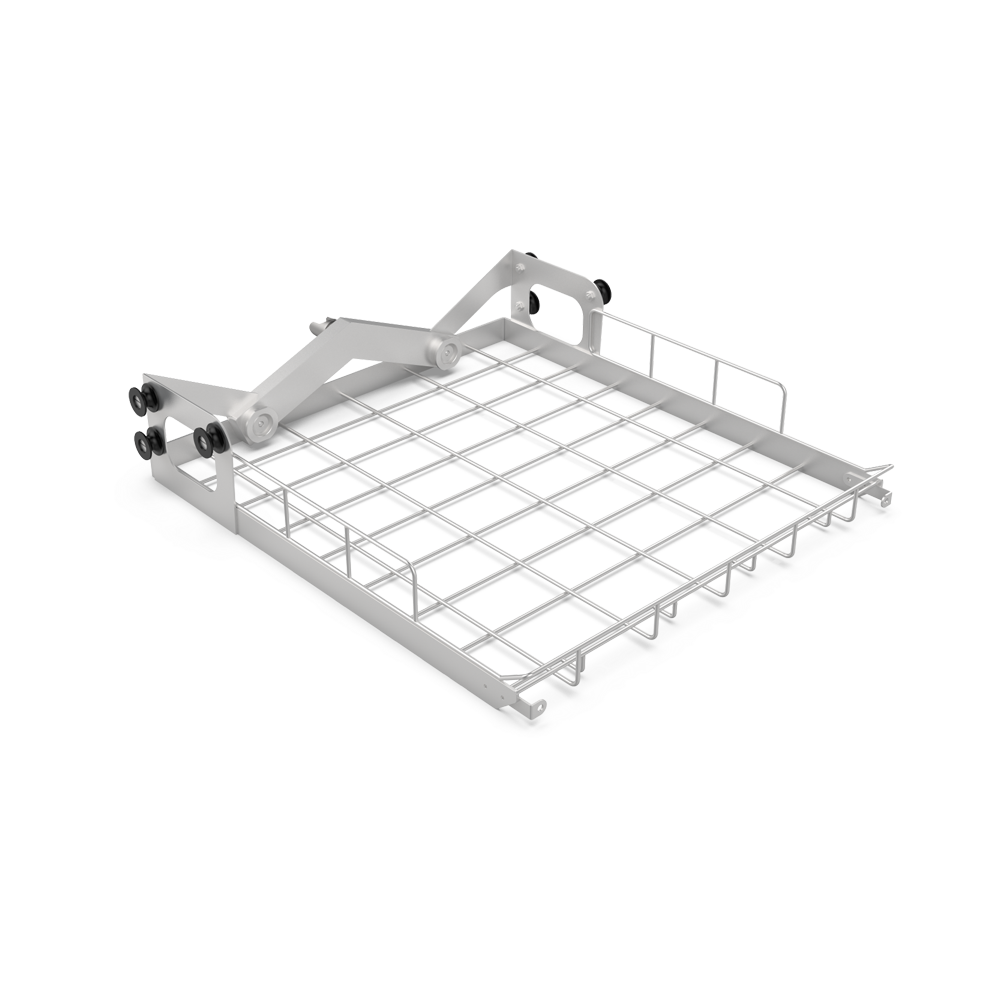

| GW01 | Upper cleaning chassis | Without spray arm |  |
| GW02 | Lower cleaning chassis | Without spray arm |  |

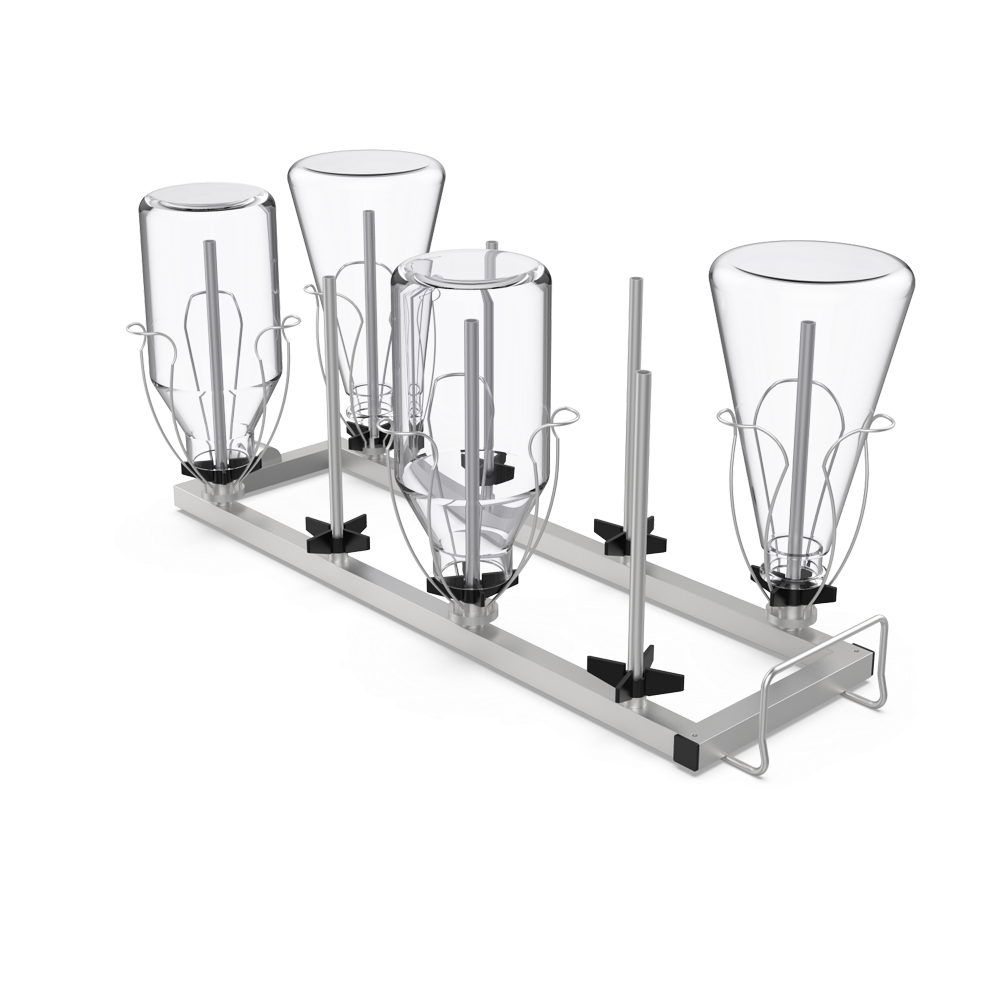

| GW03 | Spray bottle module basket, 8 positions | Bottle size: 25 to 2000ml Equipped with a three-petal flower basket bottle holder of stainless steel and a cross bottle holder Injection nozzle:Φ8×H165mm×8 |
 |
| GW04 | Spray bottle module basket, 21 positions | Bottle size: 50 to 250ml Equipped with a three-petal flower basket bottle holder of stainless steel and a cross bottle holder Injection nozzle:Φ4.6×H165mm×21 |
 |

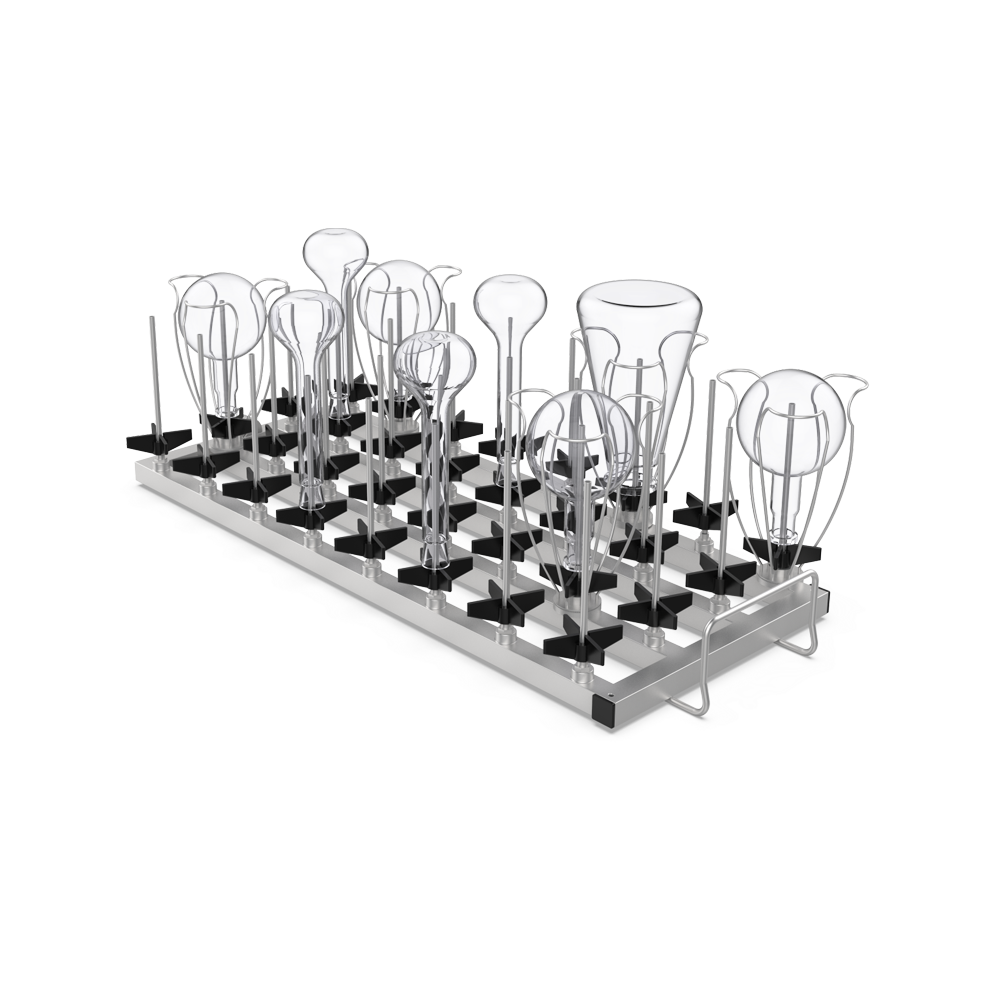

| GW05 | Spray bottle module basket, 32 positions | Bottle size: 50 to 250ml Equipped with 16 three-petal flower basket bottle holders of stainless steel and cross bottle holders Injection nozzle:Φ4×H165mm×32 |
 |

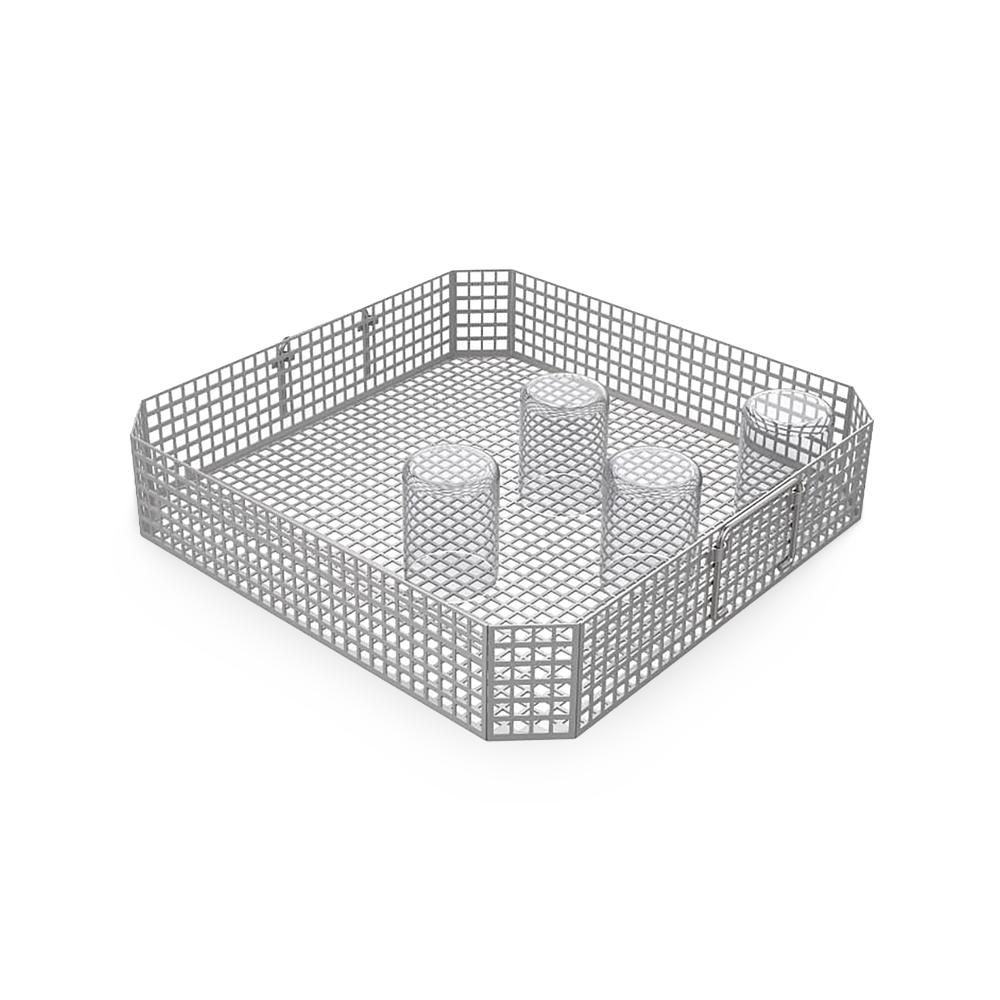

| GW06 | Cleaning frame module large quantity | Bottle size:10 to 2000ml Only one basket can be placed on each layer |
 |
| Cleaning Chamber Volume | 185L |
| Cleaning Basket Layer | 2 Layers |
| Pump Flow Rate | 0 to 500L/min |
| Air Volume | 110m³/h |
| Chamber capacity | 223 L |
| Cleaning Basket Layer | 2 Layer |
| Pump Flow Rate | 0 to 600 L/min |
| Air volume | 110m3/h |
| Chamber capacity | 317 L |
| Cleaning Basket Layer | 3 Layers |
| Pump Flow Rate | 0 to 800 L/min |
| Air volume | 220 m³/h |
| Chamber capacity | 223 L |
| Cleaning Basket Layer | 2 Layer |
| Pump Flow Rate | 0 to 600 L/min |
| Air volume | 110m3/h |
| Capacity | 420 L |
| Load level | 2 |
| Water consumption | 25 L/cycle |
| Control system | Microprocessor controlled PLC system |
| Capacity | 65 L |
| Dry method | Hot wind dry method |
| Internal flow pressure | 0.3 to 0.4 MPa |
| External water pressure | 0.04 to 1 MPa |
| Chamber capacity | 223 L |
| Cleaning Basket Layer | 2 Layer |
| Pump Flow Rate | 0 to 600 L/min |
| Air volume | 110m3/h |
| Chamber capacity | 317 L |
| Cleaning Basket Layer | 3 Layers |
| Pump Flow Rate | 0 to 800 L/min |
| Air volume | 220m3/h |
| Capacity | 160 L |
| Dry method | Hot wind dry method |
| Internal flow pressure | 0.3 to 0.4 MPa |
| External water pressure | 0.04 to 1 MPa |
| Cleaning Chamber Volume | 158 L |
| Pump Flow Rate | 0 to 400 L/min |
| Cleaning Basket Layer | 1 |
| Standard Program | 30 |
| Cleaning Chamber Volume | 185L |
| Cleaning Basket Layer | 2 |
| Pump Flow Rate | 0 to 500 L/ MIN |
| Air Volume | 55m3/h |
| Chamber capacity | 223 L |
| Cleaning Basket Layer | 2 Layer |
| Pump Flow Rate | 0 to 600 L/min |
| Air volume | 110m3/h |
