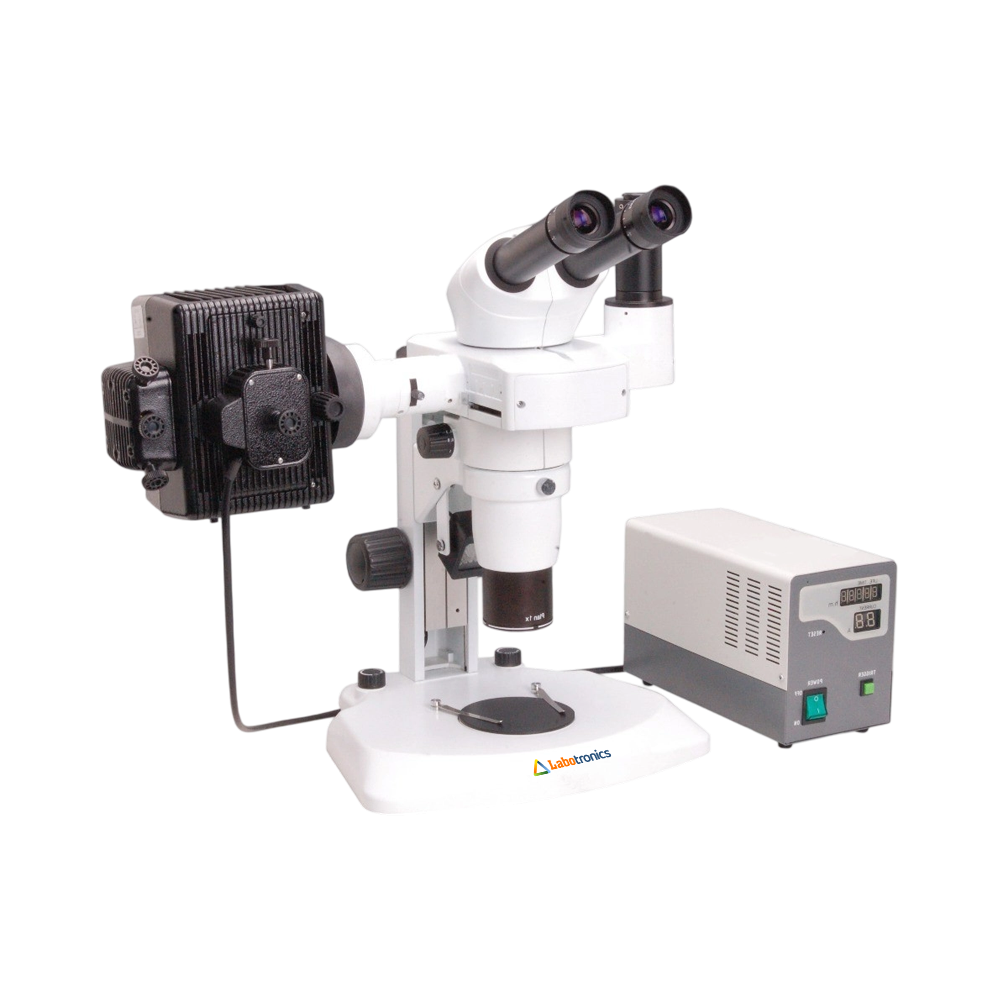

Fluorescent Stereo Microscope LB-12FSM

Name: Fluorescent Stereo Microscope LB-12FSM
Brand: Labotronics
SKU: LB-12FSM
Rating: 4.7 (592 reviews)

Fluorescent Stereo Microscope LB-12FSM provides high-resolution imaging with a parallel optical zoom system and a 20° inclined binocular viewing head. It offers a zoom range from 0.8x to 8x, allowing smooth magnification adjustment for detailed observation. It features transmitted and reflected LED illumination, ensuring even, shadow-free lighting. The microscope includes GFP-B and GFP-L fluorescent attachments, enabling clear and high-contrast fluorescence imaging.

Get Quote Download Catalog

Specifications

Optical System	Parallel optical zoom system
Viewing Head	Binocular head
Inclination	20° inclination
Eyepiece	EW10X/22 (Diopter adjustment eyepiece)
Plan Achromatic Objective	1x
Zoom Objective	0.8x to 8x
Zoom Ratio	1:10
Working Distance	78 mm
Fluorescent Attachment	GFP-B (EX480-500, DM505, BA510-560)
Focusing	Coaxial coarse & fine focusing
Focusing Range	105 mm
Illumination	Transmitted & reflected LED illumination, (brightness adjustable)
Lamp Power Supply	NFP-1 with digital display
Product Dimension	360 × 320 × 620 mm
Packaging Dimension	460 × 420 × 720 mm
Net Weight	13 kg
Gross Weight	15 kg

Features

Plan achromatic objective
Diopter-adjustable eyepiece
Coaxial focusing knobs
Smooth magnification adjustment
Easy filter switching
Adjustable light intensity

Standard Accessories

WF10X Eyepiece × 1 pair
Zoom Body × 1 pc
1x Plan Achromatic Objective × 1 pc
Fluorescence Kit (with Blue and Green Excitation Filters) × 1 pc
Top and Bottom LED Illumination Stand × 1 pc

Applications

Fluorescent Stereo Microscope LB-12FSM is ideal for observing fluorescent-labeled specimens, microstructures, and surface details. It is widely used in research labs, medical diagnostics, and industrial inspection fields.
