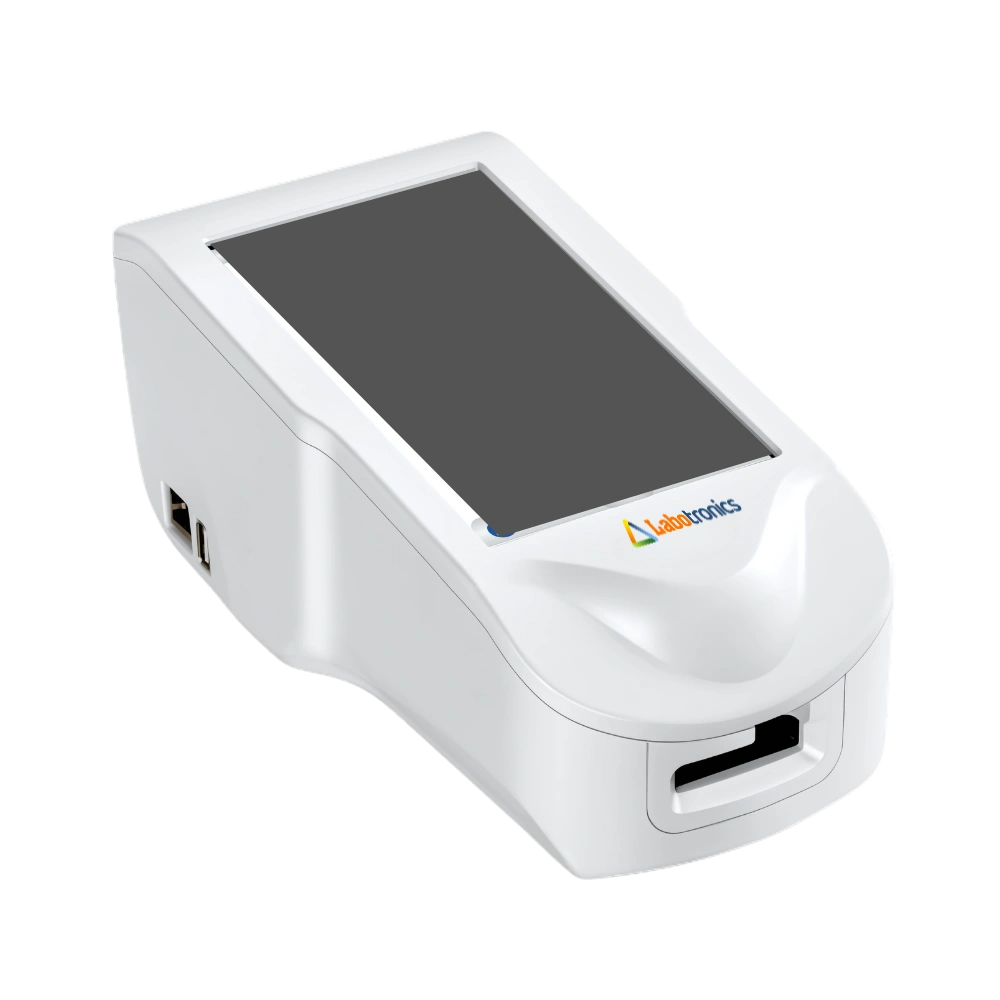

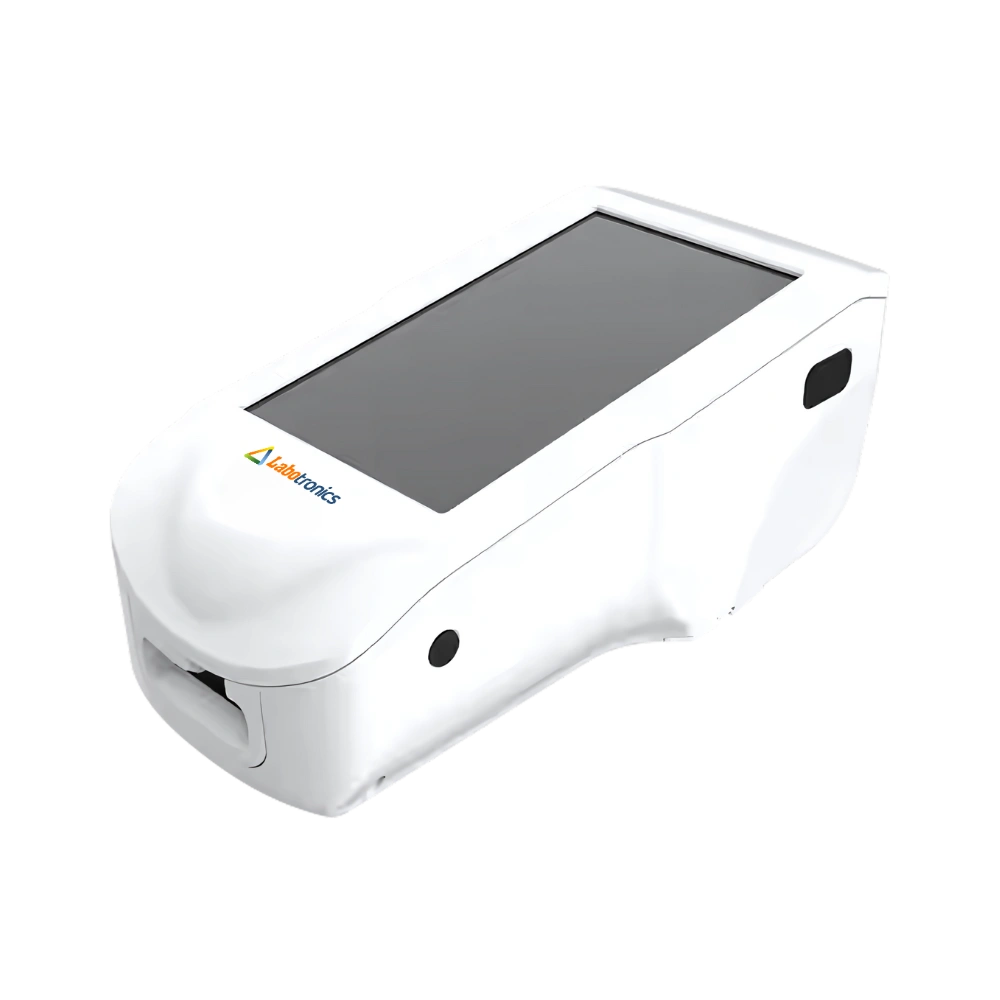

Electrolyte Analyzer LB-20ELA offers a 110 µL blood sample capacity and operates within a temperature range of 10°C to 30°C, ensuring accurate multi-electrolyte analysis. It utilizes dry electrochemical technology for precise, ion-specific measurement. It features advanced molecular probes and algorithms for reliable ion detection. Our analyzer includes a color touchscreen display, providing intuitive navigation and real-time monitoring.
Get Quote Download CatalogSpecifications
| Sample Types | Venous whole blood, plasma, and serum |
| Test Parameters | K+, Na+, Cl-, iCa2+, iMg2+ |
| Testing Principle | Electrochemistry/Microfluidic method |
| Blood Sample Capacity | 110 µL |
| Temperature Range | 10°C to 30°C |
| Cartridge Storage Condition | 2 °C to 30 °C (up to 8 months) |
| Measuring Time | 5 ± 0.5 min |
| Display | 7-inch color touch screen |
| Memory Capacity | 99,999 results |
| Product Dimension | 240 mm × 120 mm × 110 mm |
| Packaging Dimension | 38 × 35 × 35cm |
| Net Weight | 1.5 kg |
Features
Minimum sample volume
Ionized magnesium testing
Swift calibration
Printer and code scanner
Patented pellet structure
Large internal memory
Maintenance-free design
User-friendly interface
Standard Accessories
Power Cable
Electronic Control Card
Optional Accessories
Cartridge
Applications
Electrolyte Analyzer LB-20ELA is used for rapid and accurate analysis of electrolytes in animal blood samples. It is ideal for use in veterinary clinics, animal hospitals, research laboratories, and livestock healthcare facilities.
Frequently asked questions For
1. What is the primary function of a Labotronics Electrolyte Analyzer?
A Labotronics Electrolyte Analyzer is designed to measure key electrolytes such as sodium, potassium, chloride, and others in blood, serum, or plasma for accurate clinical diagnostics.
2. How do Labotronics Electrolyte Analyzers ensure accurate and ion-specific testing?
Labotronics Electrolyte Analyzers use advanced ion-selective electrode (ISE) and dry electrochemical technologies to deliver precise, ion-specific measurements across various biological samples.
3. Can Labotronics Electrolyte Analyzers handle multiple parameters in one test?
Yes, Labotronics electrolyte analyzers are capable of multi-parameter testing, allowing simultaneous measurement of several electrolytes in a single sample run.
4. How do Labotronics Electrolyte Analyzers help reduce contamination risks during testing?
Labotronics electrolyte analyzers feature closed-system operation with automated flushing and calibration, minimizing the chance of cross-contamination between samples.
5. Are Labotronics Electrolyte Analyzers portable for use in mobile or point-of-care settings?
Yes, select Labotronics electrolyte analyzers are compact and battery-powered, making them ideal for use in mobile clinics, fieldwork settings, and bedside diagnostics.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Test Parameters | K⁺, Na⁺, Cl⁻, Ca²⁺, pH, TCO₂ |
| Calculated Parameters | nCa, TCa, AG |
| Measuring Method | Ion Selective Electrode Method |
| Blood Measuring Range | K⁺ - 0.50 to 15.00 mmol/L Na⁺ - 30.0 to 200.0 mmol/L Cl⁻ - 30.0 to 200.0 mmol/L Ca²⁺ - 0.10 to 5.00 mmol/L pH - 4.0 to 9.0 mmol/L TCO₂ - 4.0 to 70.0 mmol/L |
| Sample Types | Venous whole blood, serum |
| Sample Volume Range | 80 µL to 120 µL |
| Throughput | Up to 55 samples in a row |
| Test Parameters | K⁺, Na⁺, Cl⁻, Ca²⁺, pH, Li⁺, tCO₂ |
| Test Parameters | K, Na+, Cl-, Ca2+, pH(H+), Li+, TCO2 |
| Test Range | K+ - 1.00mmol/L to 16.0mmol/L Na+ - 30.0 mmol/l to 200.0 mmol/L Cl- - 30.0 mmol/l to 200.0 mmol/L Ca++ - 0.50 mmol/l to 5.00 mmol/L TCo2 - 5.0 mmol/l to 60.0 mmol/L pH - 6.00 to 9.00 Li + - 0.3 to 3mmol/L |
| Test Resolution | K+ - 0.01 mmol/L Na+ - 0.1 mmol/L Cl- - 0.1 mmol/L Ca++ - 0.01 mmol/L TCo2 - 0.1 mmol/L pH - 0.01 Li + - 0.01 mmol/L |
| Test Principle | Ion selective electrode |
| Sample Type | Whole blood, serum, plasma, diluted urine |
| Sample Volume | 100 µL to 150 µL |
| Throughput | Up to 60 samples/hour |
| Measuring Range | K⁺: 0.50 to 15.00 mmol/L Na⁺: 30.0 to 200.0 mmol/L Cl⁻: 30.0 to 200.0 mmol/L Ca²⁺: 0.10 to 5.00 mmol/L pH: 4.0 to 9.50 (Unit) CO₂: 6.0 to 50.0 mmol/L |
