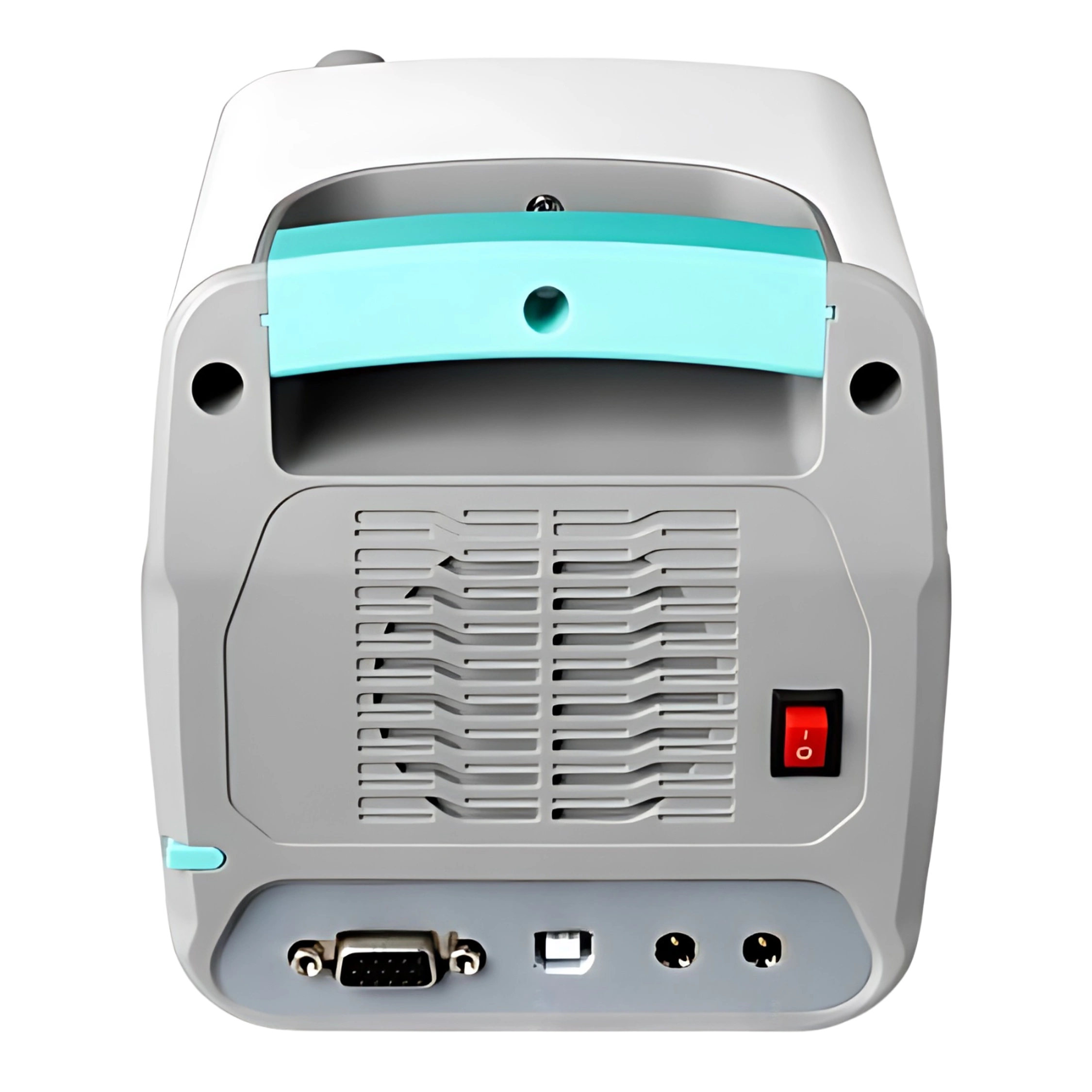

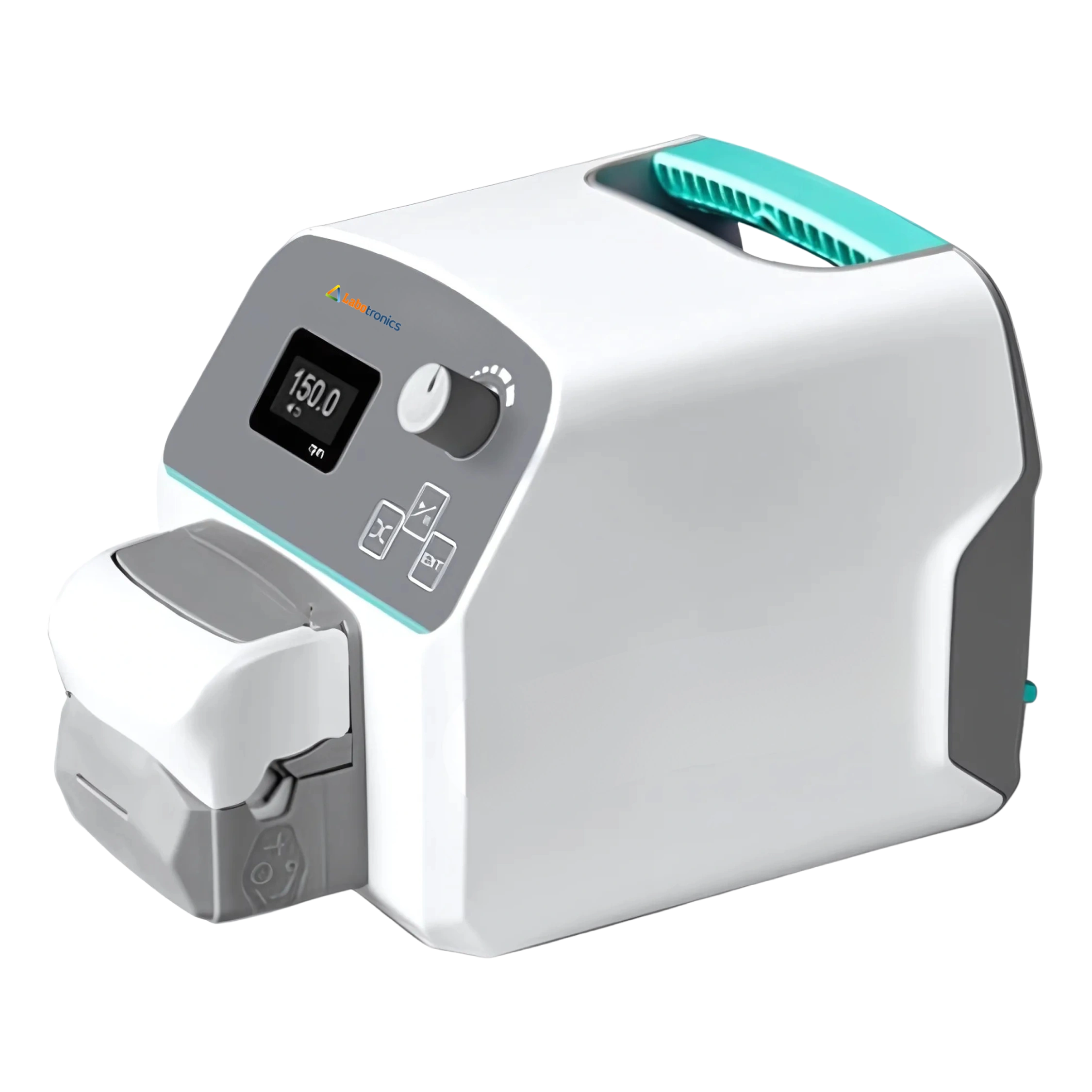

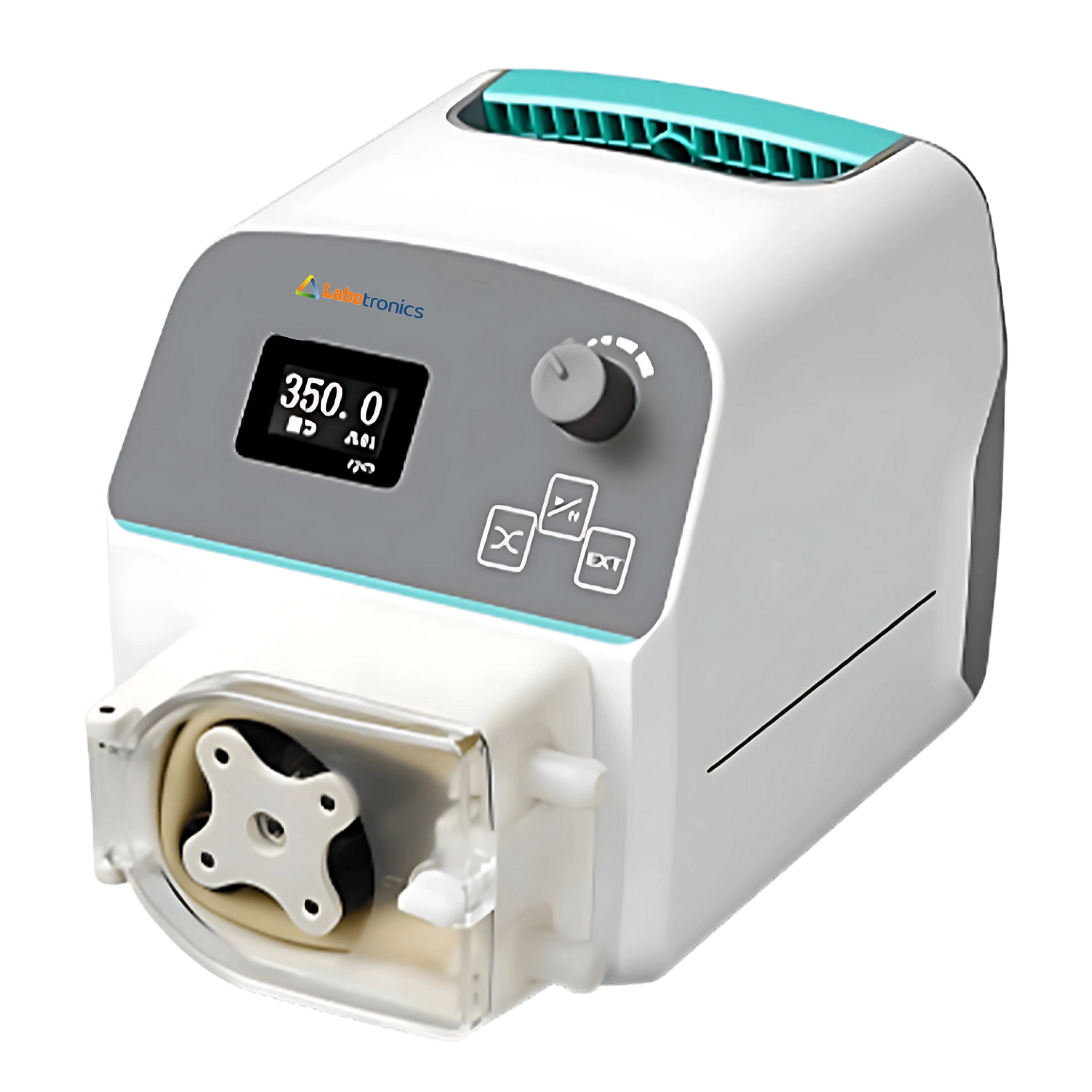

Compact Peristaltic Pump LB-10CPP

Name: Compact Peristaltic Pump LB-10CPP
Brand: Labotronics
SKU: LB-10CPP
Rating: 4.7 (501 reviews)

Compact Peristaltic Pump LB-10CPP offers a flow rate of 0.0024 to 930 mL/min and allows speed control from 0.1 to 350 rpm. It is equipped with a digital rotary knob, enabling smooth and manual speed adjustments. It supports start/stop and direction control via external switch signals, enabling integration with PLCs or automation systems. Our peristaltic pump features a bright 0.96-inch OLED display, allowing easy monitoring of operational status.

Get Quote Download Catalog

Specifications

Flow Rate	0.0024 to 930 mL/min
Speed Range	0.1 to 350 rpm
Speed Resolution	0.1 rpm
Temperature Range	0 to 40°C
Relative Humidity	< 80%
Display	0.96
Control Method	Digital knob control with mechanical keypad
External Control	Start/Stop and Direction (switch signal)
External Control Signal	Standard: 0 to 5V, 4 to 20mA Optional: 0 to 10V
Communication Interface	USB connector, RS485
Power Consumption	< 15W
Power Supply	Output: 24V / 1.25A Input: AC100V–240V, 50Hz/60Hz
Dimension (L × W × H)	189 × 128 × 135 mm
Weight	1.1 kg

Features

High speed resolution
Visible pump head
Directional flow control
Anti-corrosion housing
Easy tubing replacement
Mechanical keypad
Anti-static material
Noise-free operation
Low power consumption

Applications

Compact Peristaltic Pump LB-10CPP is used for accurate and contamination-free fluid transfer, ideal for dosing, sampling, and liquid dispensing. It is widely applied in laboratories, pharmaceutical production, research facilities, and chemical processing.

Pump Head And Tubing Selection
