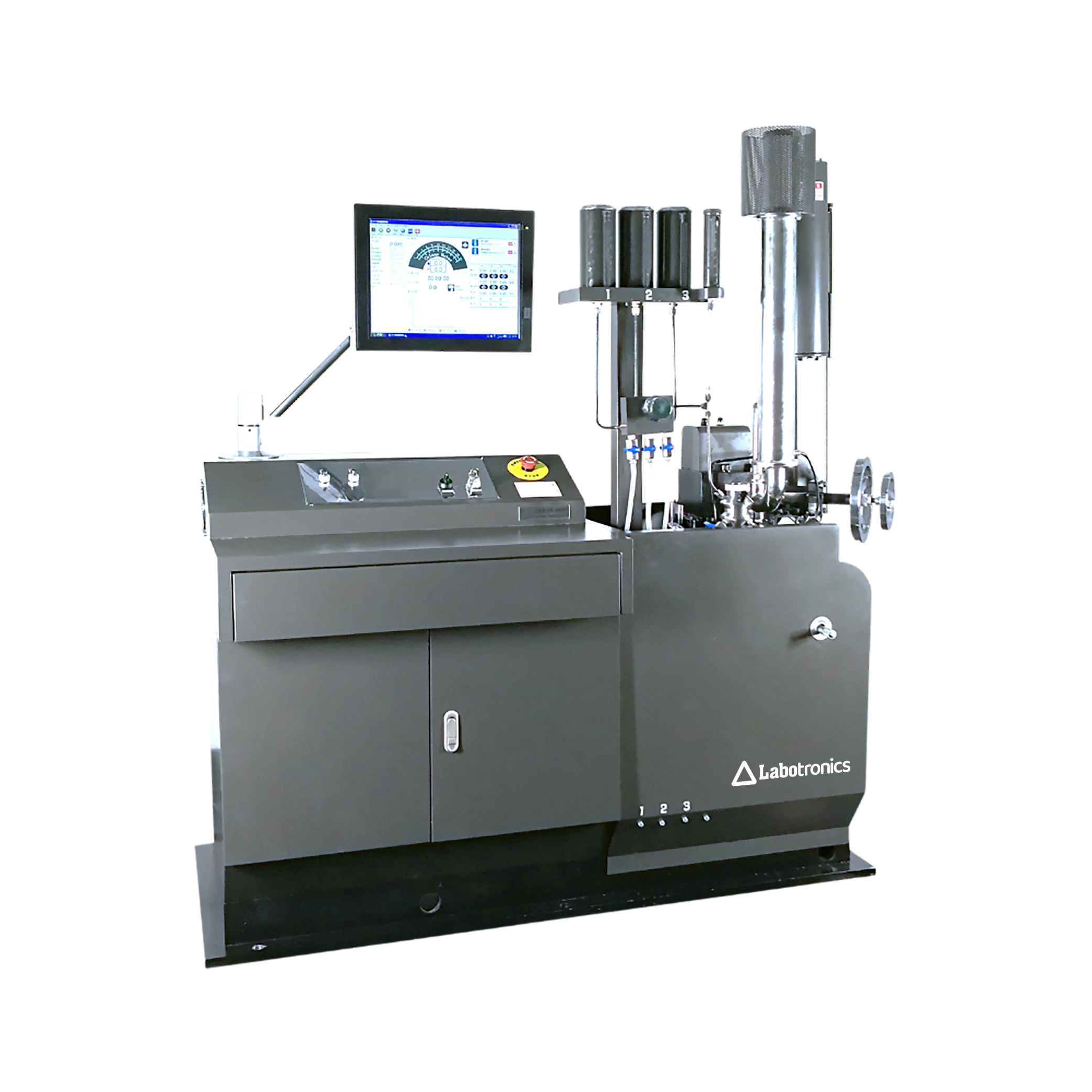

Cetane Analyzer LB-10CAZ

Name: Cetane Analyzer LB-10CAZ
Brand: Labotronics
SKU: LB-10CAZ
Rating: 4.6 (597 reviews)

Cetane Analyzer LB-10CAZ offers an engine speed of 900 rpm ± 9 r/min with an injector flow rate of 13.0 ± 0.2 mL/min for precise diesel fuel testing. It is equipped with precise adjustment knobs, ensuring fine control during testing. It provides real-time combustion signal trend curves for accurate observation of engine performance. Our cetane analyzer features an adjustable touch screen display for easy operation and convenient visualization of test parameters.

Get Quote Download Catalog

Specifications

Engine Speed	900 rpm ± 9 r/min
Compression Ratio	8:1 to 36:1
Piston Stroke	4.5 inch (114.3 mm)
Injector Flow Rate	13.0 ± 0.2 mL/min
Angle Of Injection	13° ± 0.2°
Spray Pressure	10.3 ± 0.34 MPa
Lubricating Oil’s Pressure	172 to 207 kPa
Lubricating Oil Temperature	57 °C ± 8 °C
Cylinder Cooling Temperature	100 ± 2 °C
Cylinder Inner Diameter	3.25 inch (82.55mm)
Air Inlet Temperature	66 ± 0.5 °C
Engine Water Temperature	≤ Ambient + 5℃
Fuel Injector Cooling Temperature	38 ± 2℃
Maximum Power	10 kw
Product Dimension	1450 × 720 × 1750 mm
Packaging Dimension	2430 × 960 × 1740 mm
Net Weight	1000 kg
Gross Weight	1100 kg

Features

Highly integrated interface
Circulating cooling water system
Independent temperature control
Safety interlocks
Built-in printer

Applications

Cetane Analyzer LB-10CAZ is used for the precise determination of cetane numbers in diesel fuels. It is ideal for petroleum refining, automotive industries, research institutes, testing laboratories, and regulatory agencies.
