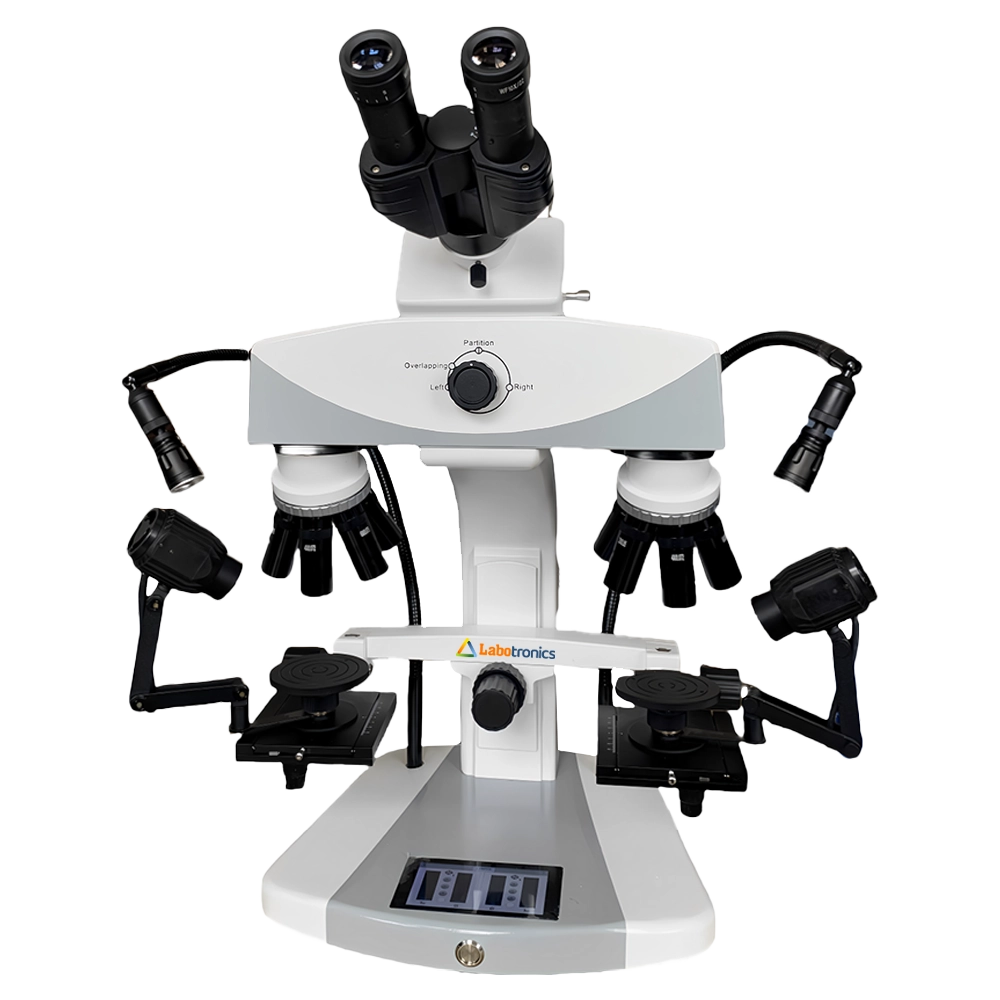

.webp "Forensic Comparison Microscope : Comparison microscope LB-10CIM")
| Total Magnification | 5x to105x |
| Bridge-Body Magnification | 1.3x |
| Eyepiece | 10x (φ23mm) 20x (φ12.5mm) |
| Objective Lenses | 0.64x, 1.0x, 1.6x, 2.5x, 4x, 0.4x (additional low multiple), 1.6x |
| Viewing head | Seidentopf trinocular head |
| Viewing head inclination | 45° |
| Interpupillary distance | 55 to 75 mm |
| Magnification range | 9.6X to 115X |
| Total optical magnification | 5X ~ 120X |
| Viewing head | Seidentopf Trinocular Head Inclined at 45° Interpupilary Distance 55 mm ~75mm |
| Eyepiece | Wide Field Eyepiece WF10×/ 22mm, diopter adjustment Wide Field Eyepiece WF20×/ 12mm, diopter adjustment |
| Field of view | Φ 2 mm ~ Φ 60 mm |

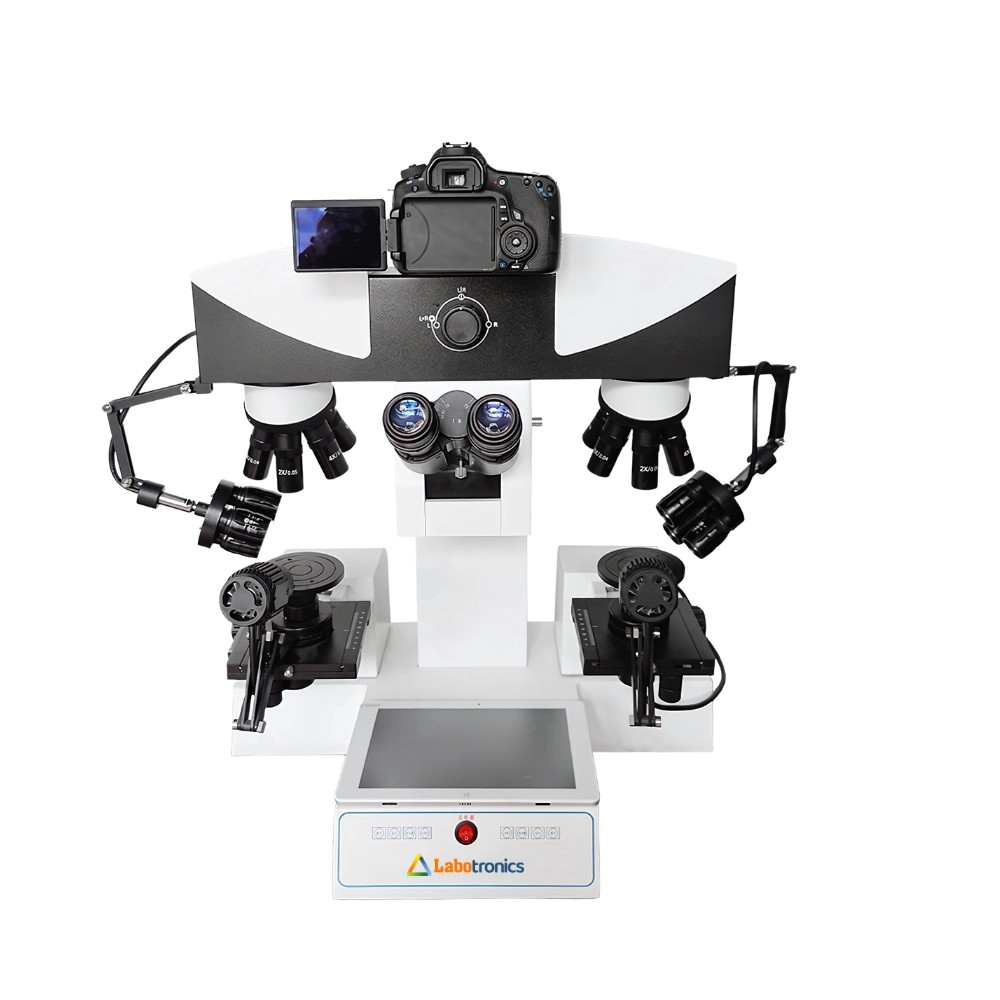

.webp "Forensic Comparison Microscope : Comparison Microscope LB-12CIM")
| Optical Magnification | 5x to120x (Expandable to 2x to 240x) |
| Eyepiece | WF10 x/φ22mm, WF20 x/φ13mm |
| Objective Lens | 0.5x, 1x, 1.5x, 2x, 4x, 6x (six-hole objective lens converter) |
| Tiltable Binocular Head | 10° to 55° tilt range, interpupillary distance adjustable 48mm to 75mm |
